Perpendicular Parking Space Assistance Operation/Display

When the ParkSense Active Park Assist system is enabled, the "Active ParkSense Searching - Push OK to Switch to Perpendicular" message will show in the EVIC/DID display. Push the OK button on the left side steering wheel switch to change your parking space setting to a perpendicular maneuver. You may switch back to parallel parking if you desire.

Once the driver pushes OK for a perpendicular parking maneuver, the "Active ParkSense Searching - Push OK to Switch to Parallel" message will appear in the EVIC/DID display.

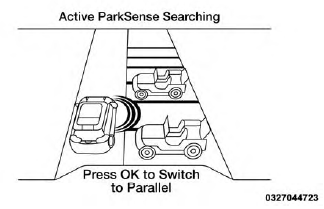

Active ParkSense Searching Display
Active ParkSense Searching Display

NOTE:

When searching for a parking space, use the turn signal indicator to select which side of the vehicle you want to perform the parking maneuver. The ParkSense Active Park Assist system will automatically search for a parking space on the passenger's side of the vehicle if the turn signal is not activated.

  • The driver needs to make sure that the selected parking space for the maneuver remains free and clear of any obstructions (e.g. pedestrians, bicycles, etc.).
  • The driver is responsible to ensure that the selected parking space is suitable for the maneuver and free/ clear of anything that may be overhanging or protruding into the parking space (e.g., ladders, tailgates, etc.

    from surrounding objects/vehicles).

  • When seeking for a parking space, the driver should drive as parallel or perpendicular (depending on the type of maneuver) to other vehicles as possible.
  • The feature will only indicate the last detected parking space (example: if passing multiple available parking spaces, the system will only indicate the last detected parking space for the maneuver).

When an available parking space has been found, and the vehicle is not in position, you will be instructed to move forward to position the vehicle for a perpendicular parking sequence.

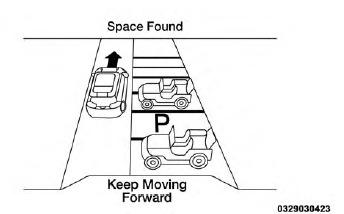

Space Found - Keep Moving Forward
Space Found - Keep Moving Forward

Once the vehicle is in position, you will be instructed to stop the vehicle's movement and remove your hands from the steering wheel.

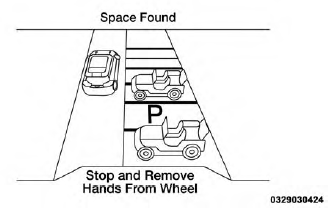

Space Found - Stop And Remove Hands From Wheel
Space Found - Stop And Remove Hands From Wheel

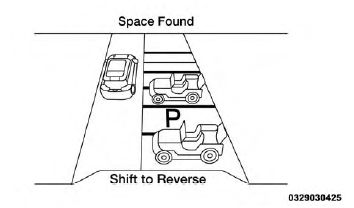

Once the vehicle is at a standstill with your hands removed from the steering wheel, you will be instructed to place the shift lever into the REVERSE position.

Space Found - Shift To Reverse
Space Found - Shift To Reverse

When the driver places the shift lever into the REVERSE position, the system may instruct the driver to wait for steering to complete.

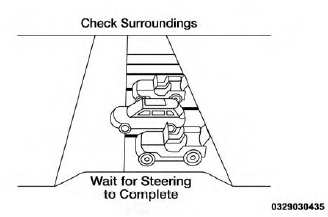

Check Surroundings - Wait For Steering To Complete
Check Surroundings - Wait For Steering To Complete

The system will then instruct the driver to check their surroundings and move backward.

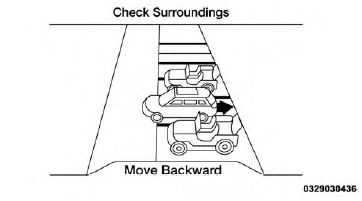

Check Surroundings - Move Backward
Check Surroundings - Move Backward

NOTE:

  • It is the drivers responsibility to use the brake and accelerator during the semi-automatic parking maneuver.
  • When the system instructs the driver to remove their hands from the steering wheel, the driver should check their surroundings and begin to back up slowly.
  • The ParkSense Active Park Assist system will allow a maximum of six shifts between DRIVE and REVERSE.

    If the maneuver cannot be completed within six shifts, the system will cancel and the EVIC/DID will instruct the driver to complete the maneuver manually.

  • The system will cancel the maneuver if the vehicle speed exceeds 5 mph (7 km/h) during active steering guidance into the parking space. The system will provide a warning to the driver at 3 mph (5 km/h) that tells them to slow down. The driver is then responsible for completing the maneuver if the system is canceled.
  • If the system is canceled during the maneuver for any reason, the driver must take control of the vehicle.

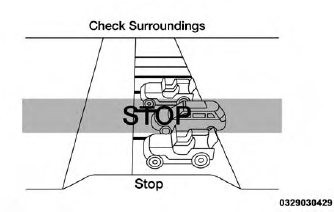

When the vehicle has reached the end of its backward movement, the system will instruct the driver to check their surroundings and stop the vehicle's movement.

Check Surroundings - STOP
Check Surroundings - STOP

NOTE: It is the drivers responsibility to use the brake and stop the vehicle. The driver should check their surroundings and be prepared to stop the vehicle either when instructed to, or when driver intervention is required.

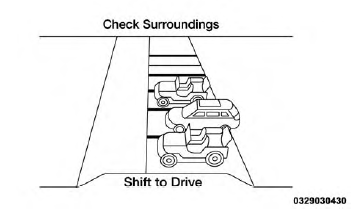

Once the vehicle is in a standstill condition, the driver will be instructed to place the shift lever into the DRIVE position.

Check Surroundings - Shift To Drive
Check Surroundings - Shift To Drive

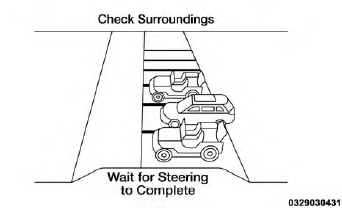

When the driver places the shift lever into the DRIVE position, the system may instruct the driver to wait for steering to complete.

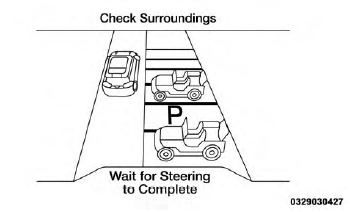

Check Surroundings - Wait For Steering To Complete
Check Surroundings - Wait For Steering To Complete

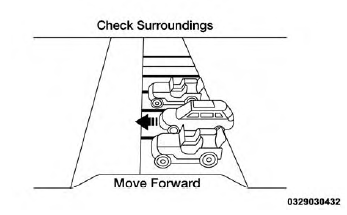

The system will then instruct the driver to check their surroundings and move forward.

Check Surroundings - Move Forward
Check Surroundings - Move Forward

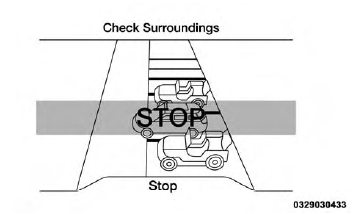

When the vehicle has reached the end of its forward movement, the system will instruct the driver to check their surroundings and stop the vehicle's movement.

Check Surroundings - STOP
Check Surroundings - STOP

NOTE: It is the drivers responsibility to use the brake and stop the vehicle. The driver should check their surroundings and be prepared to stop the vehicle either when instructed to, or when driver intervention is required.

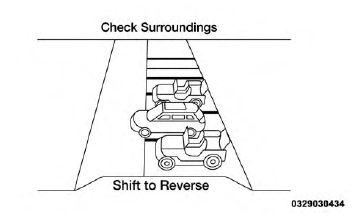

Once the vehicle is in a standstill condition, the driver will be instructed to place the shift lever into the REVERSE position.

Check Surroundings - Shift To Reverse
Check Surroundings - Shift To Reverse

When the driver places the shift lever into the REVERSE position, the system may instruct the driver to wait for steering to complete.

Check Surroundings - Wait For Steering To Complete
Check Surroundings - Wait For Steering To Complete

The system will then instruct the driver to check their surroundings and move backward.

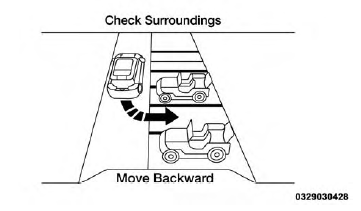

Check Surroundings - Move Backward
Check Surroundings - Move Backward

Your vehicle is now in the perpendicular park position.

When the maneuver is complete, the driver will be instructed to check the vehicle's parking position. If the driver is satisfied with the vehicle position, they should shift to PARK. The Active ParkSense Complete - Check Parking Position message will be momentarily displayed.

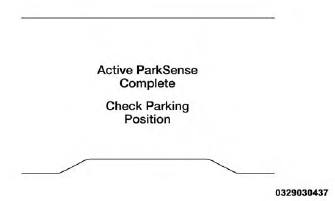

Active ParkSense Complete - Check Parking Position
Active ParkSense Complete - Check Parking Position

CAUTION!

  • The ParkSense Active Park Assist system is only a parking aid and it is unable to recognize every obstacle, including small obstacles. Parking curbs might be temporarily detected or not detected at all. Obstacles located above or below the sensors will not be detected when they are in close proximity.
  • The vehicle must be driven slowly when using the ParkSense Active Park Assist system in order to be able to stop in time when an obstacle is detected. It is recommended that the driver looks over his/her shoulder when using the ParkSense Active Park Assist system.

WARNING!

  • Drivers must be careful when performing parallel or perpendicular parking maneuvers even when using the ParkSense Active Park Assist system.

    Always check carefully behind and in front of your vehicle, look behind and in front of you, and be sure to check for pedestrians, animals, other vehicles, obstructions, and blind spots before backing up and moving forward. You are responsible for safety and must continue to pay attention to your surroundings. Failure to do so can result in serious injury or death.

  • Before using the ParkSense Active Park Assist system, it is strongly recommended that the ball mount and hitch ball assembly is disconnected from the vehicle when the vehicle is not used for towing. Failure to do so can result in injury or damage to vehicles or obstacles because the hitch ball will be much closer to the obstacle than the rear fascia when the loudspeaker sounds the continuous tone. Also, the sensors could detect the ball mount and hitch ball assembly, depending on its size and shape, giving a false indication that an obstacle is behind the vehicle.
