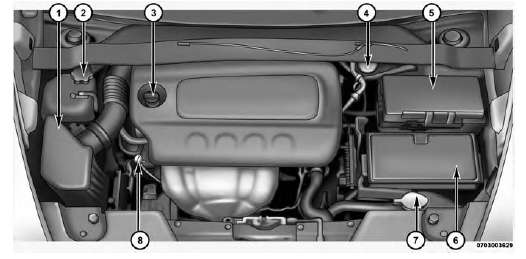

ENGINE COMPARTMENT - 2.4L

ENGINE COMPARTMENT - 2.4L

1 - Air Cleaner Filter

2 - Engine Coolant Pressure Cap

3 - Oil Fill Cap

4 - Brake Fluid Reservoir

5 - Power Distribution Center (Fuses)

6 - Battery

7 - Washer Fluid Reservoir

8 - Engine Oil Dipstick

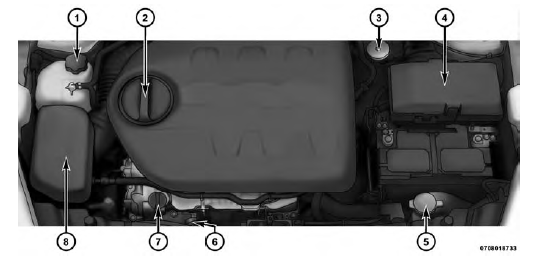

ENGINE COMPARTMENT - 3.2L

ENGINE COMPARTMENT - 3.2L

1 - Engine Coolant Reservoir

2 - Engine Oil Filter Access Cover

3 - Brake Fluid Reservoir

4 - Power Distribution Center (Fuses)

5 - Washer Fluid Reservoir

6 - Engine Oil Dipstick

7 - Engine Oil Fill

8 - Air Cleaner Filter
