Understanding the features of your vehicle » Parksense active park assist system - if equipped
Enabling And Disabling The ParkSense Active Park Assist System

The ParkSense Active Park Assist system can be enabled and disabled with the ParkSense Active Park Assist switch, located on the switch panel below the Uconnect display.

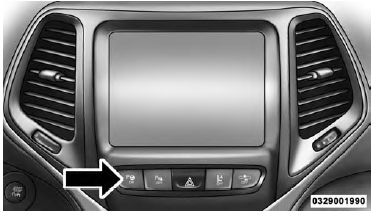

ParkSense Active Park Assist Switch
ParkSense Active Park Assist Switch

To enable the ParkSense Active Park Assist system, push the ParkSense Active Park Assist switch once (LED turns on).

To disable the ParkSense Active Park Assist system, push the ParkSense Active Park Assist switch again (LED turns off).

The ParkSense Active Park Assist system will turn off automatically for any of the following conditions:

  • The parking maneuver is completed.
  • Vehicle speed greater than 18 mph (30 km/h) when searching for a parking space.
  • Vehicle speed greater than 5 mph (7 km/h) during active steering guidance into the parking space.
  • Touching the steering wheel during active steering guidance into the parking space.
  • Pushing the ParkSense Front and Rear Park Assist switch.
  • Driver's door is opened.
  • Rear liftgate is opened.
  • Electronic Stability Control/Anti-lock Braking System intervention.
  • The ParkSense Active Park Assist system will allow a maximum of six shifts between DRIVE and REVERSE.

    If the maneuver cannot be completed within six shifts, the system will cancel and the EVIC/DID will instruct the driver to complete the maneuver manually.

The ParkSense Active Park Assist system will only operate and search for a parking space when the following conditions are present:

  • Gear position is in DRIVE.
  • Ignition is in the RUN position.
  • ParkSense Active Park Assist switch is activated.
  • Driver's door is closed.
  • Rear liftgate is closed.
  • Vehicle speed is less than 15 mph (25 km/h).

NOTE: If the vehicle is driven above approximately 15 mph (25 km/h), the EVIC/DID will instruct the driver to slow down. If the vehicle is driven above approximately 18 mph (30 km/h), the system will cancel. The driver must then reactivate the system by pushing the ParkSense Active Park Assist switch.

  • The outer surface and the underside of the front and rear fascias/bumpers are clean and clear of snow, ice, mud, dirt or other obstruction.

When pushed, the LED on the ParkSense Active Park Assist switch will blink momentarily, and then the LED will turn OFF if any of the above conditions are not present.
