Jeep Cherokee (XJ): Evaporative emission controls

Description and operation

Evaporation control system

OPERATION

The evaporation control system prevents the emission of fuel tank vapors into the atmosphere. When fuel evaporates in the fuel tank, the vapors pass through vent hoses or tubes to a charcoal filled evaporative canister. The canister temporarily holds the vapors. The Powertrain Control Module (PCM) allows intake manifold vacuum to draw vapors into the combustion chambers during certain operating conditions.

All engines use a duty cycle purge system. The PCM controls vapor flow by operating the duty cycle EVAP purge solenoid. Refer to Duty Cycle EVAP Canister Purge Solenoid.

When equipped with certain emissions packages, a Leak Detection Pump (LDP) will be used as part of the evaporative system for OBD II requirements.

Also refer to Leak Detection Pump.

NOTE: The evaporative system uses specially manufactured lines/hoses. If replacement becomes necessary, only use fuel resistant hose.

Rollover valve

DESCRIPTION

The fuel tank is equipped with a rollover valve.

The valve is located on the top of the fuel tank (Fig.

1).

Fig. 1 Rollover Valve Location
Fig. 1 Rollover Valve Location

1 - ROLLOVER VALVE
2 - RETAINER CLAMP
3 - LOCKNUT
4 - FUEL PUMP MODULE
5 - FUEL FILTER/FUEL PRESSURE REGULATOR
6 - ALIGNMENT ARROW
7 - PIGTAIL HARNESS
8 - FUEL SUPPLY TUBE
9 - EVAP CANISTER VENT LINE

OPERATION

The rollover valve will prevent fuel flow through the fuel tank vent (EVAP) hoses in the event of an accidental vehicle rollover. The EVAP canister draws fuel vapors from the fuel tank through this valve.

The valve cannot be serviced separately. If replacement is necessary, the fuel tank must be replaced.

Evap canister

DESCRIPTION

A maintenance free, EVAP canister is used on all vehicles. The EVAP canister is located under the left side of vehicle near the front of the rear axle (Fig. 2).

Fig. 2 EVAP Canister Location
Fig. 2 EVAP Canister Location

1 - CANISTER MOUNTING BRACKET
2 - BRACKET NUTS (3)
3 - EVAP CANISTER
4 - CANISTER MOUNTING NUTS (2)
5 - L. R. SHOCK ABSORBER
6 - EVAP LINES/HOSES
7 - DOWEL PINS AND BUSHINGS (2)

OPERATION

The EVAP canister is filled with granules of an activated carbon mixture. Fuel vapors entering the EVAP canister are absorbed by the charcoal granules.

Fuel tank pressure vents into the EVAP canister.

Fuel vapors are temporarily held in the canister until they can be drawn into the intake manifold. The duty cycle EVAP canister purge solenoid allows the EVAP canister to be purged at predetermined times and at certain engine operating conditions.

Duty cycle evap canister purge solenoid

OPERATION

The duty cycle EVAP canister purge solenoid (DCP) regulates the rate of vapor flow from the EVAP canister to the intake manifold. The Powertrain Control Module (PCM) operates the solenoid.

During the cold start warm-up period and the hot start time delay, the PCM does not energize the solenoid.

When de-energized, no vapors are purged. The PCM de-energizes the solenoid during open loop operation.

The engine enters closed loop operation after it reaches a specified temperature and the time delay ends. During closed loop operation, the PCM cycles (energizes and de-energizes) the solenoid 5 or 10 times per second, depending upon operating conditions.

The PCM varies the vapor flow rate by changing solenoid pulse width. Pulse width is the amount of time that the solenoid is energized. The PCM adjusts solenoid pulse width based on engine operating condition.

Leak detection pump (LDP)

OPERATION

The Leak Detection Pump (LDP) is used only with certain emission packages.

The LDP is a device used to detect a leak in the evaporative system.

The pump contains a 3 port solenoid, a pump that contains a switch, a spring loaded canister vent valve seal, 2 check valves and a spring/diaphragm.

Immediately after a cold start, engine temperature between 40F and 86F, the 3 port solenoid is briefly energized. This initializes the pump by drawing air into the pump cavity and also closes the vent seal.

During non-test test conditions, the vent seal is held open by the pump diaphragm assembly which pushes it open at the full travel position. The vent seal will remain closed while the pump is cycling. This is due to the operation of the 3 port solenoid which prevents the diaphragm assembly from reaching full travel.

After the brief initialization period, the solenoid is de-energized, allowing atmospheric pressure to enter the pump cavity. This permits the spring to drive the diaphragm which forces air out of the pump cavity and into the vent system. When the solenoid is energized and de-energized, the cycle is repeated creating flow in typical diaphragm pump fashion. The pump is controlled in 2 modes: PUMP MODE: The pump is cycled at a fixed rate to achieve a rapid pressure build in order to shorten the overall test time.

TEST MODE: The solenoid is energized with a fixed duration pulse. Subsequent fixed pulses occur when the diaphragm reaches the switch closure point.

The spring in the pump is set so that the system will achieve an equalized pressure of about 7.5 inches of water.

When the pump starts, the cycle rate is quite high.

As the system becomes pressurized pump rate drops.

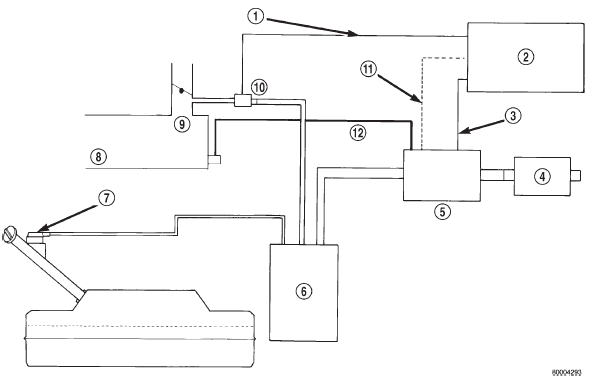

Fig. 3 Evaporative System Monitor Schematic-Typical
Fig. 3 Evaporative System Monitor Schematic-Typical

1 - DUTY CYCLE PURGE SOLENOID (DCPS) DRIVER
2 - POWERTRAIN CONTROL MODULE (PCM)
3 - 3-PORT SOLENOID DRIVER
4 - REMOTE FILTER
5 - COMBINED CANISTER VENT VALVE & LEAK DETECTION PUMP
6 - CANISTER
7 - TANK ROLLOVER VALVE & VAPOR FLOW CONTROL ORIFICE
8 - INTAKE MANIFOLD
9 - THROTTLE BODY
10 - DCPS
11 - SWITCH SIGNAL INPUT TO THE PCM
12 - ENGINE VACUUM LINE

If there is no leak the pump will quit. If there is a leak, the test is terminated at the end of the test mode.

If there is no leak, the purge monitor is run. If the cycle rate increases due to the flow through the purge system, the test is passed and the diagnostic is complete.

The canister vent valve will unseal the system after completion of the test sequence as the pump diaphragm assembly moves to the full travel position.

A typical system schematic is shown in (Fig. 3).

Crankcase ventilation system

DESCRIPTION

All 2.5L 4-cylinder and 4.0L 6-cylinder engines are equipped with a Closed Crankcase Ventilation (CCV) system (Fig. 4) or (Fig. 5).

OPERATION

The CCV system performs the same function as a conventional PCV system, but does not use a vacuum controlled valve.

On 4.0L 6 cylinder engines, a molded vacuum tube connects manifold vacuum to top of cylinder head (valve) cover at dash panel end. The vacuum fitting contains a fixed orifice of a calibrated size. It meters the amount of crankcase vapors drawn out of the engine.

On 2.5L 4 cylinder engines, a fitting on drivers side of cylinder head (valve) cover contains the metered orifice. It is connected to manifold vacuum.

A fresh air supply hose from the air cleaner is connected to front of cylinder head cover on 4.0L engines. It is connected to rear of cover on 2.5L engines.

Fig. 4 CCV System-2.5L Engine-Typical
Fig. 4 CCV System-2.5L Engine-Typical

1 - AIR INLET FITTING
2 - AIR FILTER COVER
3 - FIXED ORIFICE FITTING

Fig. 5 CCV System-4.0L Engine-Typical
Fig. 5 CCV System-4.0L Engine-Typical

1 - AIR INLET FITTING
2 - FIXED ORIFICE FITTING
3 - AIR FILTER COVER

engine and mixes with crankcase vapors. Manifold vacuum draws the vapor/air mixture through the fixed orifice and into the intake manifold. The vapors are then consumed during combustion.

Vehicle emission control information (veci) label

DESCRIPTION

All vehicles are equipped with a combined VECI label. This label is located in the engine compartment (Fig. 6).

Fig. 6 VECI Label Location-Typical
Fig. 6 VECI Label Location-Typical

1 - VECI LABEL

OPERATION

The VECI label contains the following:

  •  Engine family and displacement
  •  Evaporative family
  •  Emission control system schematic
  • Certification application
  •  Engine timing specifications (if adjustable)
  •  Idle speeds (if adjustable)
  •  Spark plug and gap

The label also contains an engine vacuum schematic.

There are unique labels for vehicles built for sale in the state of California and the country of Canada. Canadian labels are written in both the English and French languages. These labels are permanently attached and cannot be removed without defacing information and destroying label.

Diagnosis and testing

Vacuum schematics

A vacuum schematic for emission related items can be found on the Vehicle Emission Control Information (VECI) label. For label location, refer to Vehicle Emission Control Information (VECI) Label.

Leak detection pump (LDP)

Refer to the appropriate Powertrain Diagnostic Procedures service manual for LDP testing procedures.

Crankcase ventilation system

TESTING/CLEANING

The Crankcase Ventilation (CCV) system performs the same function as a conventional PCV system, but does not use a vacuum controlled valve. A vacuum fitting containing a fixed orifice of a calibrated size is used. It meters the amount of crankcase vapors drawn out of the engine.

(1) Check each CCV system tube (line) for leaks, cracks, kinks or bends. Replace as necessary (2) Disconnect each CCV tube..

(3) Blow compressed air through each tube and check for blockage or restrictions. If cleaning is necessary, spray a soapy-type all-purpose cleaner into each component and blow out. After restriction is cleared, rinse out component with clear water. Blow water from component and install to vehicle. To prevent damage to plastic components, never spray carburetor-type cleaner into any of the plastic tubes or the fixed orifice fitting. Never attempt to clean the fixed orifice fitting with a metal object as calibration could be affected. If fixed fitting cannot be cleared, replace it.

Removal and installation

Evap canister

The EVAP canister is located under left side of vehicle near front of rear axle (Fig. 7).

REMOVAL

(1) Disconnect vacuum hoses/lines at EVAP canister.

Note location of lines before removal.

(2) Remove EVAP canister and mounting bracket assembly from body (3 nuts).

(3) Remove canister from mounting bracket (2 nuts).

INSTALLATION

(1) Position canister into canister mounting bracket. Align 2 canister dowel pins into rubber bushings.

(2) Install 2 canister nuts and tighten to 5 N·m (45 in. lbs.) torque.

(3) Position canister and bracket assembly to body.

(4) Install 3 nuts and tighten to 43 N·m (32 ft.

lbs.) torque.

(5) Connect vacuum hoses/lines at EVAP canister.

Fig. 7 EVAP Canister Location
Fig. 7 EVAP Canister Location

1 - CANISTER MOUNTING BRACKET
2 - BRACKET NUTS (3)
3 - EVAP CANISTER
4 - CANISTER MOUNTING NUTS (2)
5 - L. R. SHOCK ABSORBER
6 - EVAP LINES/HOSES
7 - DOWEL PINS AND BUSHINGS (2)

Duty cycle evap canister purge solenoid

REMOVAL

The solenoid attaches to a bracket located in rightrear side of engine compartment (Fig. 8) or (Fig. 9).

The top of the solenoid has the word UP or TOP on it. The solenoid will not operate properly unless it is installed correctly.

(1) Disconnect electrical wiring connector at solenoid.

(2) Disconnect vacuum harness at solenoid.

(3) Remove solenoid and its support bracket.

INSTALLATION

(1) Install EVAP canister purge solenoid and its mounting bracket to cowl panel.

(2) Tighten bolt to 5 N·m (45 in. lbs.) torque.

(3) Connect vacuum harness and wiring connector.

Rollover valve(s)

The rollover valves(s) are/is molded into the fuel tank and are not serviced separately. If replacement is necessary, the fuel tank must be replaced. Refer to Fuel Tank Removal/Installation.

Fig. 8 EVAP Canister Purge Solenoid (Without LDP)
Fig. 8 EVAP Canister Purge Solenoid (Without LDP)

1 - ELECTRICAL CONNECTOR
2 - VACUUM HARNESS
3 - PURGE SOLENOID
4 - MOUNTING BOLT

Fig. 9 EVAP Canister Purge Solenoid (With LDP)
Fig. 9 EVAP Canister Purge Solenoid (With LDP)

1 - LDP FILTER
2 - EVAP SOLENOID
3 - EVAP SYSTEM TEST PORT
4 - EVAP SOLENOID ELEC. CONNECTOR
5 - LDP ELEC. CONNECTOR
6 - LDP MOUNTING SCREWS (2)
7 - LDP
8 - LDP MOUNTING BRACKET

Leak detection pump (LDP)

The LDP is located in the right-rear side of engine compartment (Fig. 9). The LDP filter is located above the LDP (Fig. 9). The LDP and LDP filter are replaced (serviced) as one unit.

REMOVAL

(1) Carefully remove hose at LDP filter.

(2) Remove LDP filter mounting bolt and remove from vehicle.

(3) Carefully remove vapor/vacuum lines at LDP.

(4) Disconnect electrical connector at LDP.

(5) Remove 2 LDP mounting screws (Fig. 9) and remove from vehicle.

INSTALLATION

(1) Install LDP to mounting bracket. Tighten screws to 1 N·m (11 in. lbs.) torque.

(2) Install LDP filter to mounting bracket. Tighten bolt to 7 N·m (65 in. lbs.) torque.

(3) Carefully install vapor/vacuum lines to LDP, and install hose to LDP filter. The vapor/vacuum lines and hoses must be firmly connected.

Check the vapor/vacuum lines at the LDP, LDP filter and EVAP canister purge solenoid for damage or leaks. If a leak is present, a Diagnostic Trouble Code (DTC) may be set.

(4) Connect electrical connector to LDP.

Specifications

TORQUE CHART

Description Torque

EVAP Canister Mounting Nuts (canister-tomounting bracket) . . . . . . . . . 5 N·m (45 in. lbs.)
EVAP Canister Mounting Bracket Nuts (mounting bracket-to-body) . . . . . . . . . . 43 N·m (32 in. lbs.)
EVAP Canister Purge Solenoid Bracket-to-Body Mounting Bolt . . . . . . . . . . . . 5 N·m (45 in. lbs.)
LDP Mounting Screws . . . . . . . . 1 N·m (11 in. lbs.)
