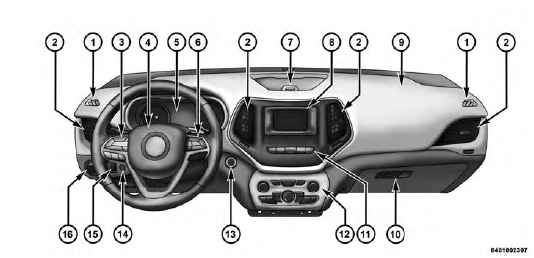

Instrument panel features

1 - Air Demister Outlet

2 - Air Outlet

3 - EVIC/DID Display Controls

4 - Horn/Driver Air Bag

5 - Instrument Cluster

6 - Cruise Controls

7 - Storage Compartment

8 - Radio

9 - Passenger Air Bag

10 - Glove Compartment

11 - Lower Switch Bank

12 - Uconnect Feature Controls - If Equipped

13 - Start/Stop Ignition Button

14 - Liftgate Release Button

15 - Dimmer Switches

16 - Headlight Switch
