Jeep Cherokee (XJ): Schematics and diagrams. Specifications. Special tools

Schematics and diagrams

HYDRAULIC SCHEMATICS

Fig. 235 Throttle Pressure Adjustment
Fig. 235 Throttle Pressure Adjustment

1 - HEX WRENCH (IN THROTTLE LEVER ADJUSTING SCREW)
2 - SPECIAL TOOL C-3763 (POSITIONED BETWEEN THROTTLE LEVER AND KICKDOWN VALVE)

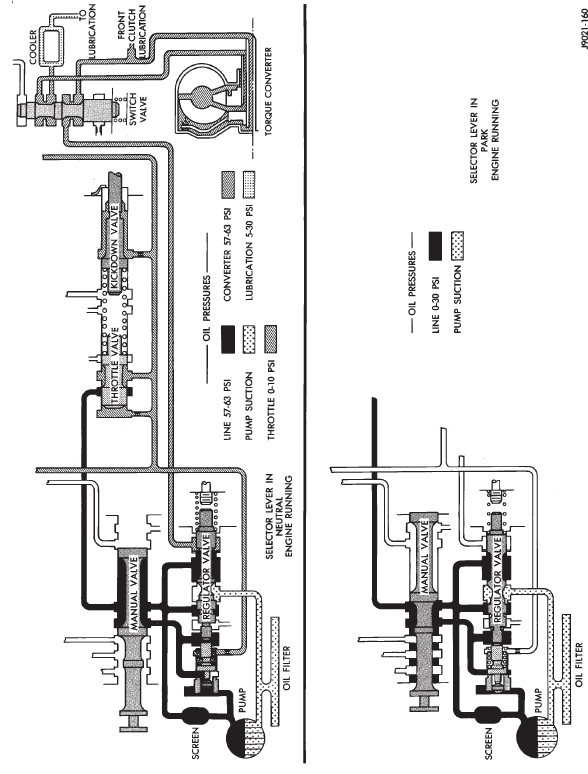

HYDRAULIC FLOW IN PARK/NEUTRAL
HYDRAULIC FLOW IN PARK/NEUTRAL

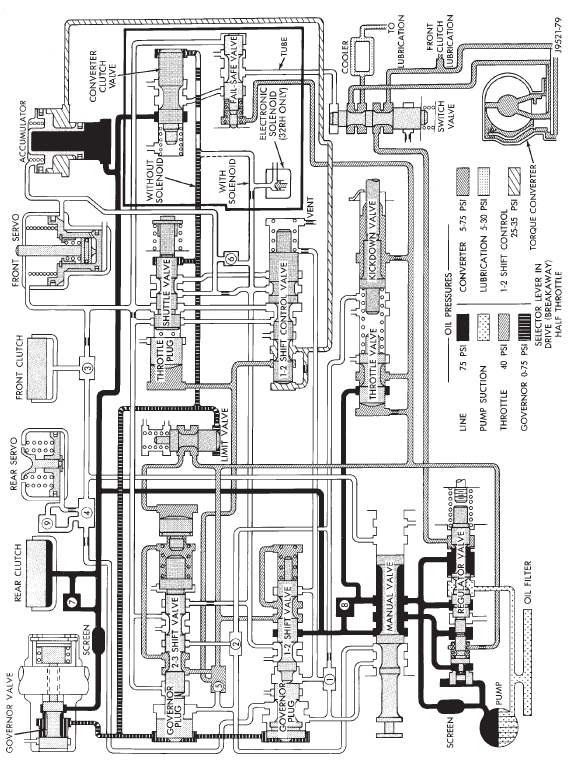

HYDRAULIC FLOW IN D-FIRST GEAR
HYDRAULIC FLOW IN D-FIRST GEAR

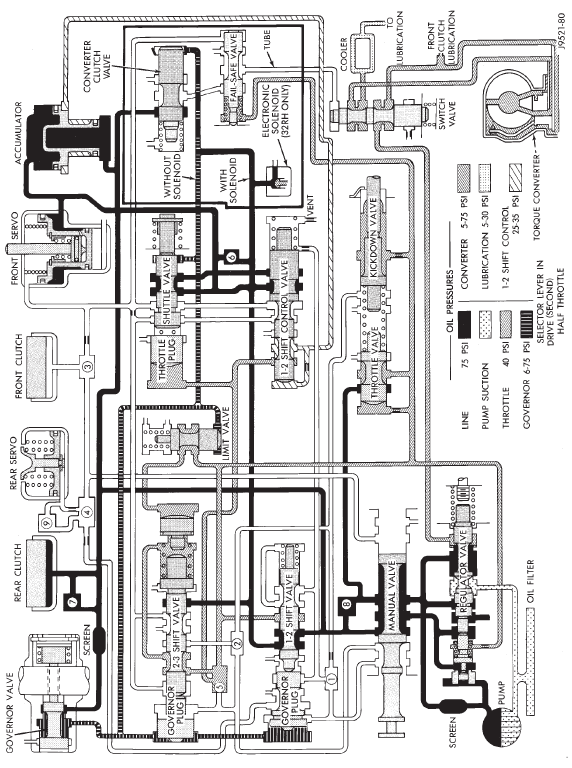

HYDRAULIC FLOW IN D-SECOND GEAR
HYDRAULIC FLOW IN D-SECOND GEAR

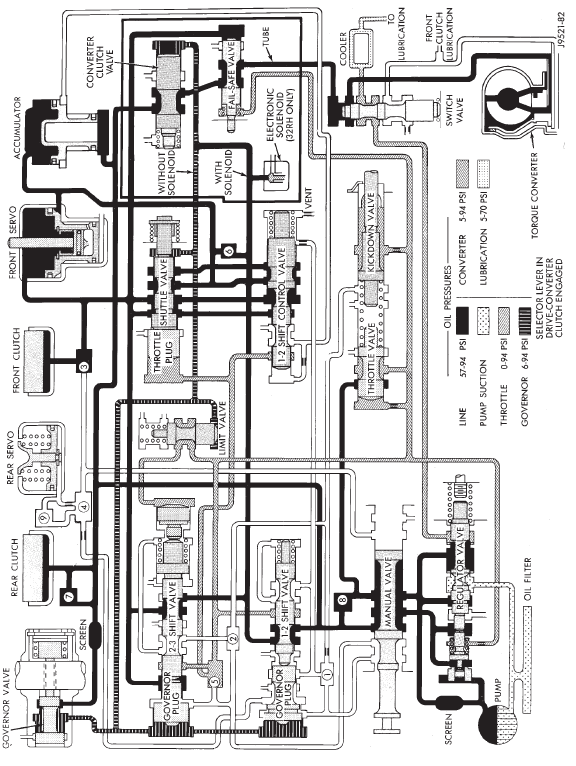

HYDRAULIC FLOW IN D-THIRD GEAR
HYDRAULIC FLOW IN D-THIRD GEAR

HYDRAULIC FLOW IN D-THIRD GEAR (CONVERTER CLUTCH APPLIED)
HYDRAULIC FLOW IN D-THIRD GEAR (CONVERTER CLUTCH APPLIED)

HYDRAULIC FLOW AT PART THROTTLE 3-2 KICKDOWN
HYDRAULIC FLOW AT PART THROTTLE 3-2 KICKDOWN

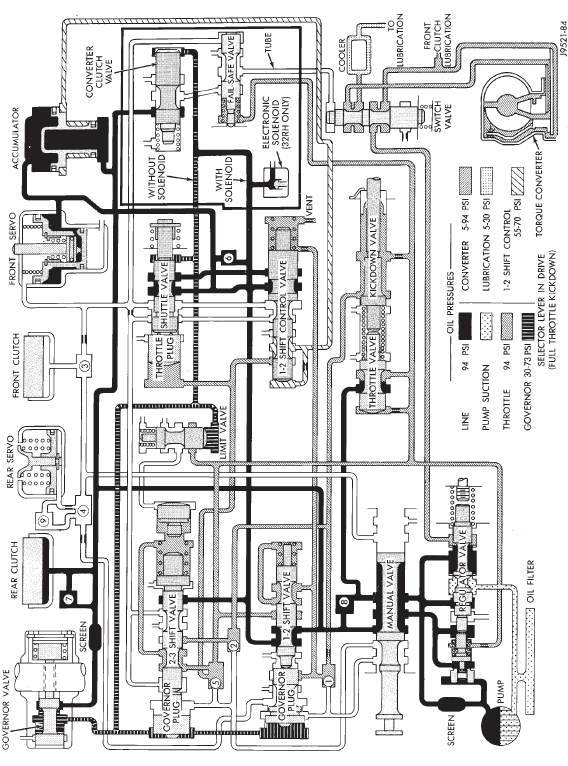

HYDRAULIC FLOW AT FULL THROTTLE 3-2 KICKDOWN
HYDRAULIC FLOW AT FULL THROTTLE 3-2 KICKDOWN

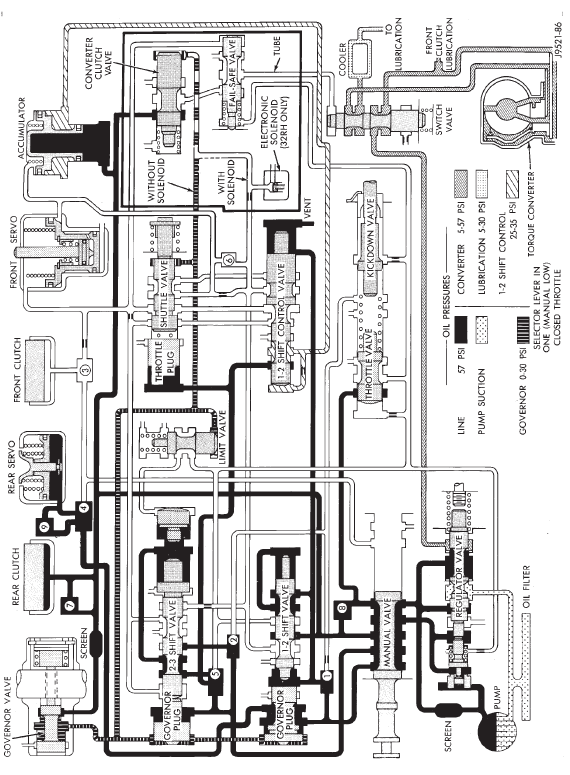

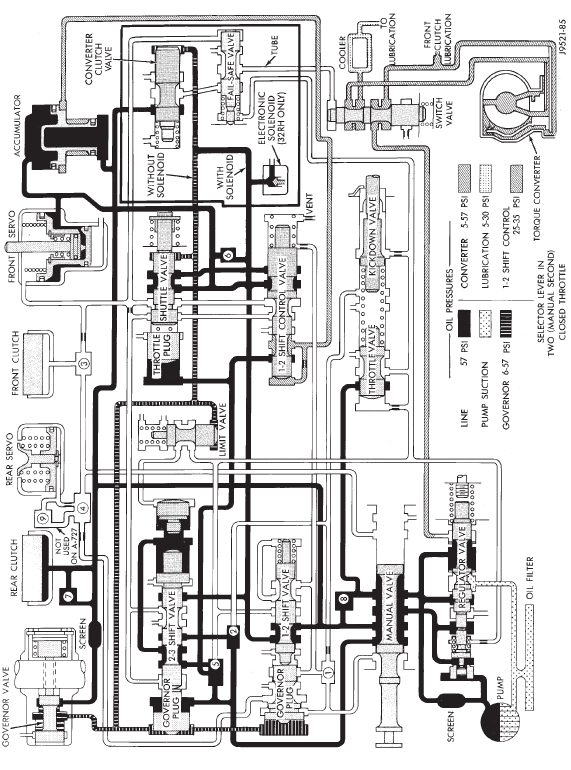

HYDRAULIC FLOW IN MANUAL SECOND
HYDRAULIC FLOW IN MANUAL SECOND

HYDRAULIC FLOW IN MANUAL LOW

HYDRAULIC FLOW IN MANUAL LOW

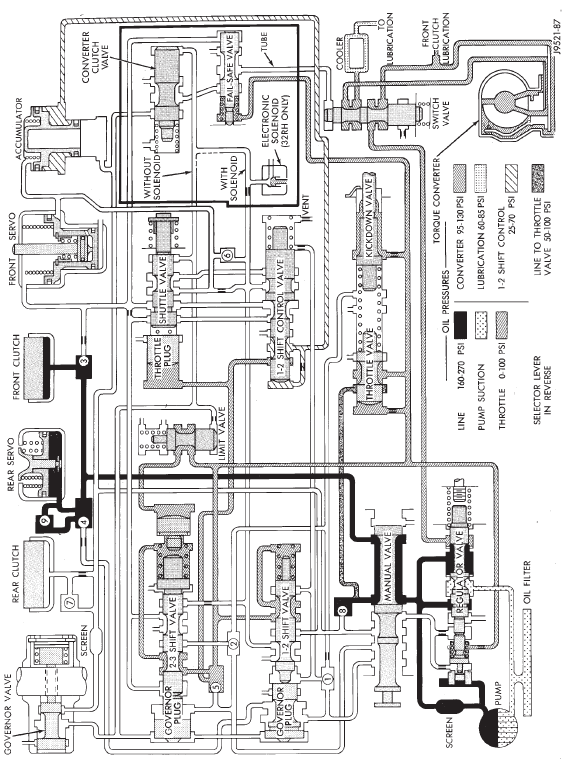

HYDRAULIC FLOW IN REVERSE
HYDRAULIC FLOW IN REVERSE

Specifications

30RH AUTOMATIC TRANSMISSION

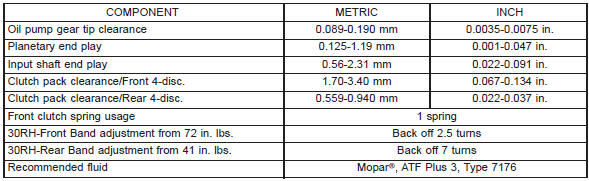

GENERAL

GENERAL

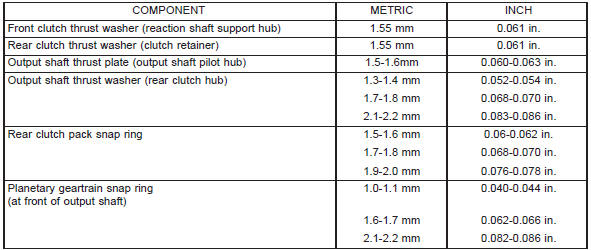

THRUST WASHER/SPACER/SNAP RING DIMENSIONS

THRUST WASHER/SPACER/SNAP RING DIMENSIONS

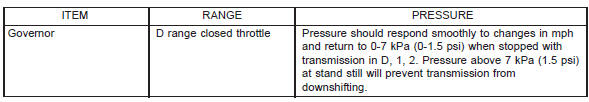

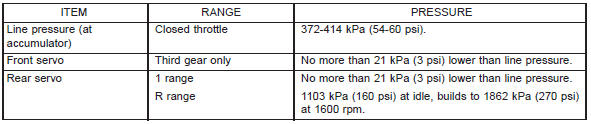

PRESSURE TEST-ALL

PRESSURE TEST-ALL

PRESSURE TEST-ALL

TORQUE

DESCRIPTION TORQUE

Bolt/nut, crossmember . . . . . . . . 68 N·m (50 ft. lbs.)
Bolt, driveplate to crankshaft . . 75 N·m (55 ft. lbs.)
Plug, front band reaction . . . . . 17 N·m (13 ft. lbs.)
Locknut, front band adj. . . . . . . 34 N·m (25 ft. lbs.)
Switch, park/neutral . . . . . . . . . 34 N·m (25 ft. lbs.)
Bolt, fluid pan . . . . . . . . . . . . . . 17 N·m (13 ft. lbs.)
Bolt, oil pump . . . . . . . . . . . . . . 20 N·m (15 ft. lbs.)
Bolt, overrunning clutch cam . . 17 N·m (13 ft. lbs.)
Plug, pressure test port . . . . . . . 14 N·m (10 ft. lbs.)
Bolt, reaction shaft support . . . . 20 N·m (15 ft. lbs.)
Locknut, rear band . . . . . . . . . . 41 N·m (30 ft. lbs.)
Bolt. speedometer adapter . . . . . . 11 N·m (8 ft. lbs.)
Screw, fluid filter . . . . . . . . . . . . 4 N·m (35 in. lbs.)
Bolt, valve body to case . . . . . 12 N·m (100 in. lbs.)

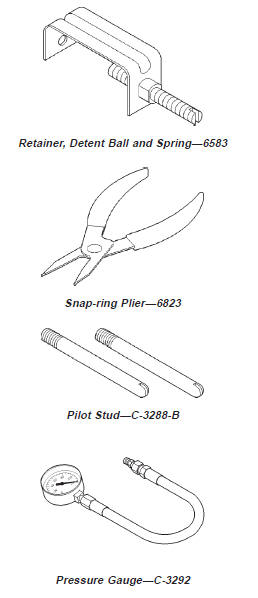

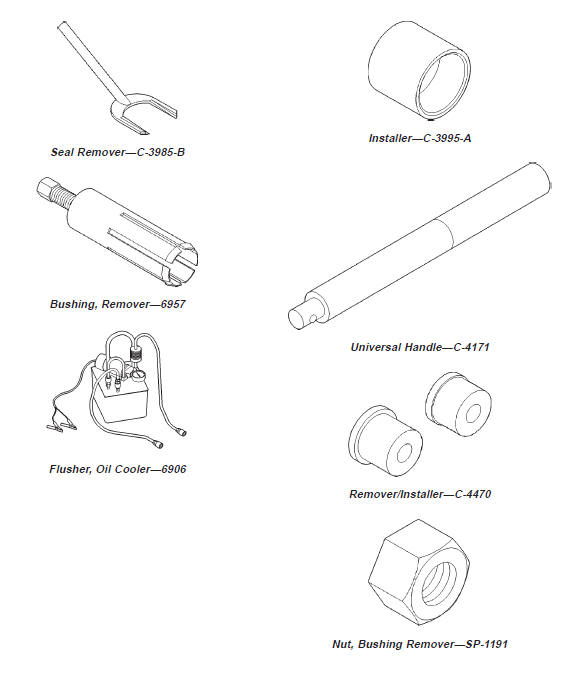

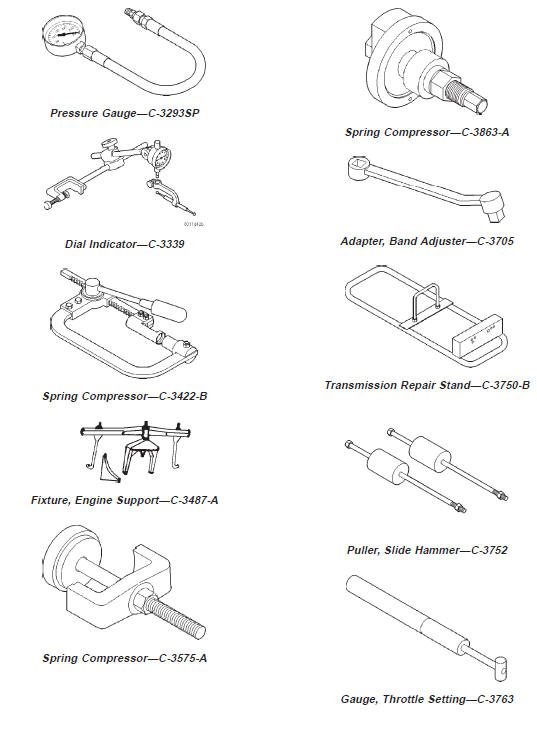

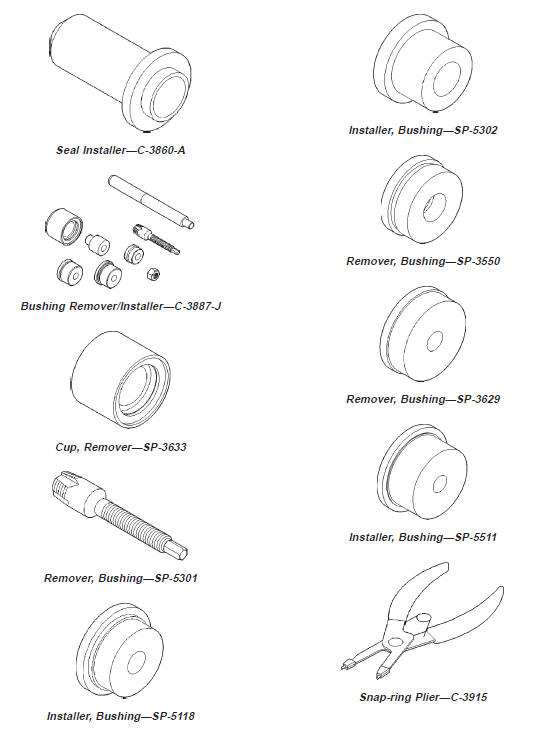

Special tools

30RH TRANSMISSIONS

30RH TRANSMISSIONS

30RH TRANSMISSIONS

30RH TRANSMISSIONS

30RH TRANSMISSIONS

30RH TRANSMISSIONS

    Previous pageAdjustments
