Jeep Cherokee (XJ): Specifications

Jeep Cherokee (XJ) 1984 - 2001 Service Manual > Charging system > Specifications

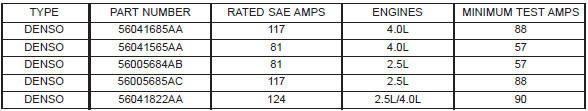

Generator ratings

Generator ratings

Torque chart

TORQUE CHART

Right Hand Drive= RHD, Left Hand Drive= LHD.

Description Torque

Generator Mounting Bolt-LHD-2.5L/4.0L
Engine . . . . . . . . . . . . . . . . . . 55 N·m (41 ft. lbs.)
Generator Pivot Bolt/Nut-LHD-2.5L/4.0L
Engine . . . . . . . . . . . . . . . . . . 55 N·m (41 ft. lbs.)
Battery Terminal Nut-LHD or
RHD . . . . . . . . . . . . . . . . . . 8.5 N·m (75 in. lbs.)

Description Torque

Ground Terminal Nut-LHD or
RHD . . . . . . . . . . . . . . . . . . 8.5 N·m (75 in. lbs.)
Harness Hold-down Nut-LHD or
RHD . . . . . . . . . . . . . . . . . . 8.5 N·m (75 in. lbs.)
Field Terminal Nuts-LHD or
RHD . . . . . . . . . . . . . . . . . . 2.8 N·m (25 in. lbs.)
