Jeep Cherokee (XJ): Specifications. Special tools
TORQUE CHART DESCRIPTION TORQUE Air Cleaner Housing Mount. Bolts . . . . . . . . 8 N·m
(71 in. lbs.) FUEL SYSTEM
Specifications
Engine Coolant Temperature Sensor . . . . . . 11 N·m
(96 in. lbs.)
IAC Motor-To-Throttle Body Bolts . . . . . . . . 7 N·m
(60 in. lbs.)
Intake Manifold Air Temp. Sensor . . . . . . . 28 N·m
(20 ft. lbs.)
MAP Sensor Mounting Screws . . 3 N·m (25 in. lbs.)
Oxygen Sensor . . . . . . . . . . . . . 30 N·m (22 ft. lbs.)
PCM Mounting Screws . . . . . . . . 4 N·m (35 in. lbs.)
Power Steering Pressure Switch . . . . . . 14-22 N·m
(124-195 in. lbs.)
Throttle Body Mounting Bolts . . . . . . . . . . . 11 N·m
(100 in. lbs.)
Throttle Position Sensor Mounting Screws . . 7 N·m
(60 in. lbs.)
Vehicle Speed Sensor Mounting Bolt . . . . . 2.2 N·m

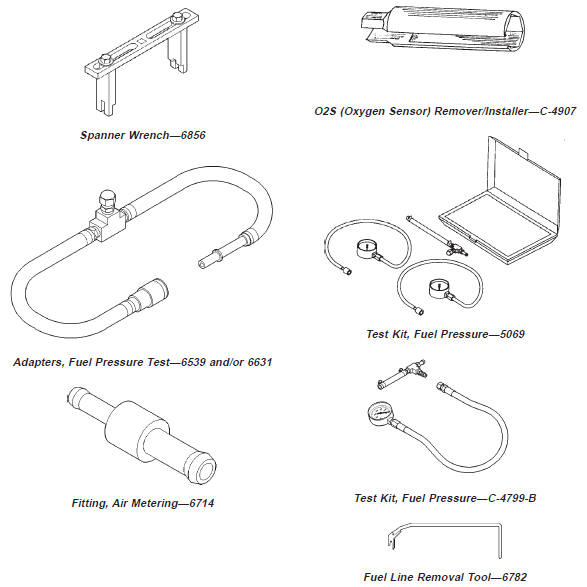

(20 in. lbs.)Special tools
Other materials:
Fuel pump relay-pcm output. Idle air control (iac) motor-pcm
output. Radiator fan relay-pcm output
Fuel pump relay-pcm output
DESCRIPTION
The 5-pin, 12-volt, fuel pump relay is located in
the Power Distribution Center (PDC). Refer to the
label on the PDC cover for relay location.
OPERATION
The Powertrain Control Module (PCM) energizes
the electric fuel pump through the fuel pump relay.
T ...
