Jeep Cherokee (XJ): Specifications. Special tools

Specifications

TORQUE

DESCRIPTION TORQUE

Plugs, Access . . . . . . . . . . . . . . . 19 N·m (14 ft.lbs.)
Bolts, Adapter Housing . . . . . . . 34 N·m (25 ft.lbs.)
Switch, Back-up Light . . . . . . . 44 N·m (32.5 ft.lbs.)
Plugs, Drain and Fill . . . . . . . . 44 N·m (32.5 ft.lbs.)
Bolts, Front Bearing Retainer . . 17 N·m (12 ft.lbs.)
Plugs, Interlock and Detent . . . . 19 N·m (14 ft.lbs.)
Screws, Propeller Shaft Clamp . . . . . . . 16-23 N·m (140-200 in.lbs.)
Bolts, Rear Mount to Transmission . . . . 33-60 N·m (24-44 ft.lbs.)
Nut, Rear Mount Clevis . . 54-75 N·m (40-55 ft.lbs.)
Nuts, Rear Mount to Crossmember . . . . 41-68 N·m (30-50 ft.lbs.)
Pins, Restrictor . . . . . . . . . . . . 27.4 N·m (20 ft.lbs.)
Bolts, Reverse Shift Arm Bracket . . . . . . . . 18 N·m (13 ft.lbs.)
Screw, Shift Arm Set . . . . . . . . . 38 N·m (28 ft.lbs.)
Screws, Shift Fork Set . . . . . . . . 20 N·m (15 ft.lbs.)
Nut, Shift Knob . . . . . . . . 20-34 N·m (15-25 ft.lbs.)
Screws, Shifter Floor Cover . . . . . . . . . . . . 2-3 N·m (17-30 in.lbs.)
Bolts, Shift Tower . . . . . . . . . . . . 18 N·m (13 ft.lbs.)
Nuts, Transfer Case Mounting . . . . . . . 30-41 N·m (22-30 ft.lbs.)

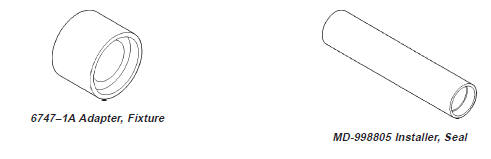

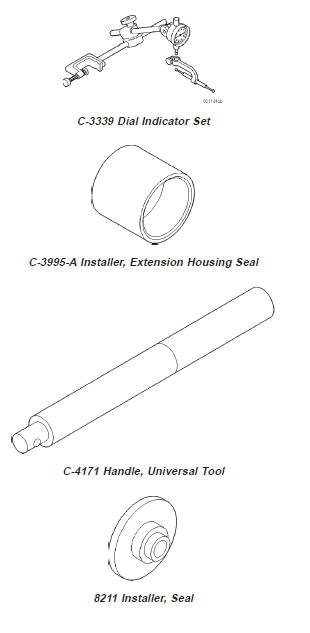

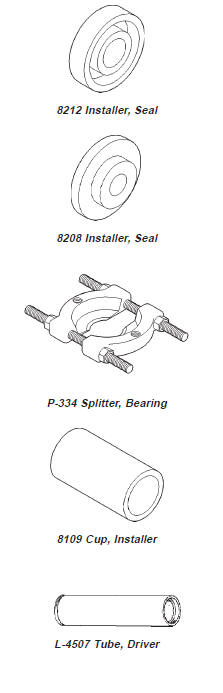

Special tools

AX5

Special toolsSpecial tools

AX5
