Jeep Cherokee (KL): Uconnect settings

Jeep Cherokee (KL) 2014 - 2023 Owners Manual > Understanding your instrument panel > Uconnect settings

The Uconnect system uses a combination of buttons on the touchscreen and buttons on the faceplate located on the center of the instrument panel that allow you to access and change the customer programmable features.

NOTE: Features can vary by vehicle.

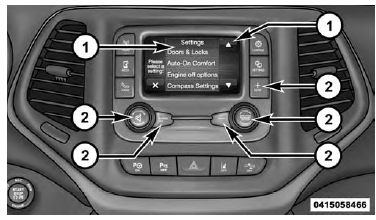

Uconnect 5.0 Buttons On The Touchscreen And Buttons On The Faceplate
Uconnect 5.0 Buttons On The Touchscreen And Buttons On The Faceplate

1 - Uconnect Buttons On The Touchscreen

2 - Uconnect Buttons On The Faceplate

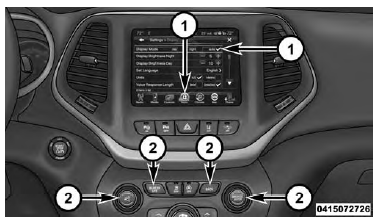

Uconnect 8.4A/8.4AN Buttons On The Touchscreen And Buttons On The Faceplate
Uconnect 8.4A/8.4AN Buttons On The Touchscreen And Buttons On The Faceplate

1 - Uconnect Buttons On The Touchscreen

2 - Uconnect Buttons On The Faceplate
