DESCRIPTION

The NV242 is a full-time transfer case (Fig. 1). It provides full time 2-wheel, or 4-wheel drive operation.

A differential in the transfer case is used to control torque transfer to the front and rear axles. A low range gear provides increased low speed torque capability for off road operation. The low range provides a 2.72:1 reduction ratio.

Fig. 1 NV242 Transfer Case
Fig. 1 NV242 Transfer Case

The input gear is splined to the transmission output shaft. It drives the mainshaft through the planetary gear and range hub. The front output shaft is operated by a drive chain that connects the shaft to a drive sprocket on the mainshaft. The drive sprocket is engaged/disengaged by the mode fork, which operates the mode sleeve and hub. The sleeve and hub are not equipped with a synchro mechanism for shifting.

The geartrain is mounted in two aluminum case halves attached with bolts. The mainshaft front and rear bearings are mounted in aluminum retainer housings bolted to the case halves.

TRANSFER CASE IDENTIFICATION

A circular ID tag is attached to the rear case of each transfer case (Fig. 2). The ID tag provides the transfer case model number, assembly number, serial number, and low range ratio.

The transfer case serial number also represents the date of build.

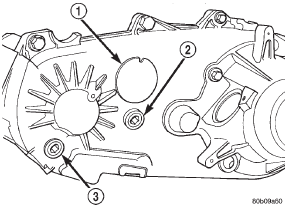

Fig. 2 Fill/Drain Plug And I. D. Tag Locations
Fig. 2 Fill/Drain Plug And I. D. Tag Locations

1 - I. D. TAG
2 - FILL PLUG
3 - DRAIN PLUG

OPERATING RANGES

NV242 operating ranges are 2WD (2-wheel drive), 4x4 part-time, 4x4 full time, and 4 Lo.

The 2WD and 4x4 full time ranges can be used at any time and on any road surface.

The 4x4 part-time and 4 Lo ranges are for off road use only. The only time these ranges can be used on hard surface roads, is when the surface is covered with snow and ice.

SHIFT MECHANISM

Operating ranges are selected with a floor mounted shift lever. The shift lever is connected to the transfer case range lever by an adjustable linkage rod. A straight line shift pattern is used. Range positions are marked on the shifter bezel cover plate, or on the shift knob.

Lubricant and fill level

DESCRIPTION

Recommended lubricant for the NV242 transfer case is Mopart Dexron II, or ATF Plus, type 7176.

Approximate lubricant fill capacity is 1.35 liters (2.85 pints).

The fill and drain plugs are both in the rear case (Fig. 3). Correct fill level is to the bottom edge of the fill plug hole. Be sure the vehicle is level to ensure an accurate fluid level check.

Fig. 3 Fill/Drain Plug Locations
Fig. 3 Fill/Drain Plug Locations

1 - I. D. TAG
2 - FILL PLUG
3 - DRAIN PLUG

Diagnosis and testing

NV242 DIAGNOSIS

DIAGNOSIS CHART

CONDITION

POSSIBLE CAUSE

CORRECTION

Transfer case difficult to shift or will not shift into desired range.
  1. Transfer case shift linkage binding.
  2.  Insufficient or incorrect lubricant.
  3.  Internal transfer case components binding, worn, or damaged.
  1.  Repair or replace linkage as necessary.
  2. Drain and refill transfer case with the correct type and quantity of lubricant.
  3.  Repair or replace components as necessary.
Transfer case noisy in all drive modes.
  1. Insufficient or incorrect lubricant.
  1.  Drain and refill transfer case with the correct type and quantity of lubricant.
Lubricant leaking from transfer case seals or vent.
  1. Transfer case overfilled.
  2.  Transfer case vent closed or restricted.
  3.  Transfer case seals damaged or installed incorrectly.
  1.  Drain lubricant to the correct level.
  2.  Clean or replace vent as necessary.
  3.  Replace suspect seal.
Transfer case will not shift through 4X4 part time range (light remains on)
  1. Incomplete shift due to drivetrain torque load.
  2.  Incorrect tire pressure.
  3.  Excessive Tire wear.
  4.  Excessive vehicle loading.
  1.  Momentarily release the accelerator pedal to complete the shift.
  2. Correct tire pressure as necessary.
  3. Correct tire condition as necessary.
  4. Correct as necessary

Removal and installation

Transfer case

REMOVAL

(1) Shift transfer case into Neutral.

(2) Raise vehicle.

(3) Drain transfer case lubricant.

(4) Mark front and rear propeller shaft yokes for alignment reference.

(5) Support transmission with jack stand.

(6) Remove rear crossmember, or skid plate.

(7) Disconnect front/rear propeller shafts at transfer case.

(8) Disconnect vehicle speed sensor wires.

(9) Disconnect transfer case linkage rod from range lever.

(10) Disconnect transfer case vent hose (Fig. 4) and indicator switch harness, if necessary.

(11) Support transfer case with transmission jack.

(12) Secure transfer case to jack with chains.

(13) Remove nuts attaching transfer case to transmission.

(14) Pull transfer case and jack rearward to disengage transfer case.

(15) Remove transfer case from under vehicle.

INSTALLATION

(1) Mount transfer case on a transmission jack.

(2) Secure transfer case to jack with chains.

(3) Position transfer case under vehicle.

(4) Align transfer case and transmission shafts and install transfer case on transmission.

(5) Install and tighten transfer case attaching nuts to 35 N·m (26 ft. lbs.) torque (Fig. 4).

(6) Connect vehicle speed sensor wires, and vent hose.

(7) Connect indicator switch harness to transfer case switch, if necessary. Secure wire harness to clips on transfer case.

(8) Align and connect propeller shafts. Refer to Group 3, Differential and Driveline, for proper procedures and specifications.



1 - VENT TUBE
2 - TRANSFER CASE
3 - TRANSMISSION

(9) Fill transfer case with correct fluid. Check transmission fluid level. Correct as necessary.

(10) Install rear crossmember, or skid plate.

Tighten crossmember bolts to 41 N·m (30 ft. lbs.) torque.

(11) Remove transmission jack and support stand.

(12) Connect shift rod to transfer case range lever.

(13) Adjust transfer case shift linkage.

(14) Lower vehicle and verify transfer case shift operation.

Shift lever

REMOVAL

(1) Shift transfer case into 4L.

(2) Raise vehicle.

(3) Loosen adjusting trunnion locknut and slide shift rod out of trunnion (Fig. 5). If rod lacks enough travel to come out of trunnion, push trunnion out of torque shaft.

(4) Lower vehicle.

(5) Remove console. Refer to Group 23, Body, for proper procedures.

(6) Remove screws attaching lever assembly to floorpan and remove assembly and shift rod (if left attached).

INSTALLATION

(1) If shift rod was not removed from lever assembly, work rod down through floorpan opening. Then position lever assembly on floorpan and install assembly attaching screws.

(2) Install console. Refer to Group 23, Body, for proper procedures.

(3) Raise vehicle.

(4) Connect trunnion to torque shaft arm. Or, slide shift rod into trunnion on range lever. Be sure shift rod slides freely in trunnion.

(5) Verify that range lever is in 4L position. Then tighten trunnion lock bolt.

(6) Lower vehicle and check transfer case shift operation.

Speedometer

REMOVAL

(1) Raise vehicle.

(2) Disconnect wires from vehicle speed sensor.

(3) Remove adapter clamp and screw (Fig. 6).

(4) Remove speed sensor and speedometer adapter as an assembly.

(5) Remove speed sensor retaining screw and remove sensor from adapter.

(6) Remove speedometer pinion from adapter.

Replace pinion if chipped, cracked, or worn.

(7) Inspect sensor and adapter O-rings (Fig. 6).

Remove and discard O-rings if worn or damaged.

(8) Inspect terminal pins in speed sensor. Clean pins with Mopart electrical spray cleaner if dirty or oxidized. Replace sensor if faulty, or if pins are loose, severely corroded, or damaged.

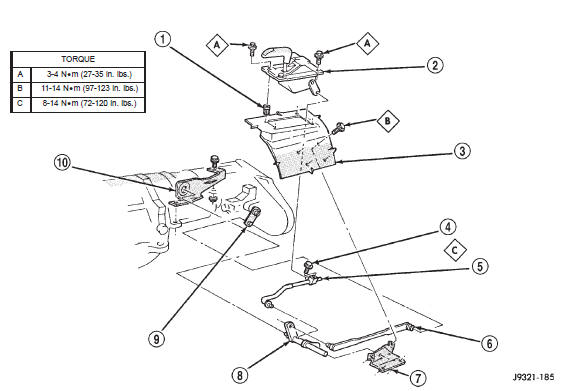

Fig. 5 Shift Linkage
Fig. 5 Shift Linkage

1 - RIVNUT (4)
2 - SHIFT LEVER ASSEMBLY
3 - FLOORPAN
4 - TRUNNION LOCK BOLT
5 - SELECTOR ROD AND TRUNNION
6 - SHIFT LEVER ROD
7 - TORQUE SHAFT FRAME BRACKET
8 - TORQUE SHAFT
9 - TRANSFER CASE SHIFT LEVER
10 - TORQUE SHAFT TRANSFER CASE BRACKET

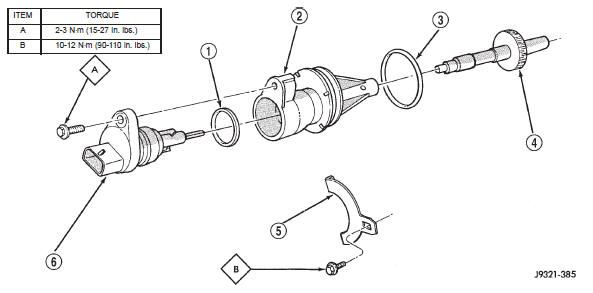

Fig. 6 Speedometer Components
Fig. 6 Speedometer Components

1 - SENSOR O-RING
2 - SPEEDOMETER ADAPTER
3 - ADAPTER O-RING
4 - SPEEDOMETER PINION
5 - ADAPTER CLAMP
6 - VEHICLE SPEED SENSOR

INSTALLATION AND INDEXING

(1) Thoroughly clean adapter flange and adapter mounting surface in housing. Surfaces must be clean for proper adapter alignment and speedometer operation.

(2) Install new O-rings on speed sensor and speedometer adapter (Fig. 6), if necessary.

(3) Lubricate sensor and adapter O-rings with transmission fluid.

(4) Install vehicle speed sensor in speedometer adapter. Tighten sensor attaching screw to 2-3 N·m (15-27 in. lbs.) torque.

(5) Install speedometer pinion in adapter.

(6) Count number of teeth on speedometer pinion.

Do this before installing assembly in housing. Then lubricate pinion teeth with transmission fluid.

(7) Note index numbers on adapter body (Fig. 7).

These numbers will correspond to number of teeth on pinion.

(8) Install speedometer assembly in housing.

(9) Rotate adapter until required range numbers are at 6 o-clock position. Be sure range index numbers correspond to number of teeth on pinion gear.

(10) Install speedometer adapter clamp and retaining screw. Tighten clamp screw to 10-12 N·m (90-110 in. lbs.) torque.

(11) Connect wires to vehicle speed sensor.

(12) Lower vehicle and top off transmission fluid level if necessary.

Fig. 7 Location Of Index Numbers On Speedometer Adapter
Fig. 7 Location Of Index Numbers On Speedometer Adapter

1 - SPEEDOMETER ADAPTER
2 - INDEX NUMBER LOCATION

Front output shaft seal

REMOVAL

(1) Raise vehicle.

(2) Remove front propeller shaft. Refer to Group 3, Differential and Driveline, for proper procedure.

(3) Remove front output shaft yoke.

(4) Remove seal from front case with pry tool (Fig.

8).

Fig. 8 Remove Front Output Shaft Seal
Fig. 8 Remove Front Output Shaft Seal

1 - OUTPUT SHAFT SEAL
2 - PRYBAR

INSTALLATION

(1) Install new front output seal in front case with Installer Tool 6952-A as follows: (a) Place new seal on tool. Garter spring on seal goes toward interior of case.

(b) Start seal in bore with light taps from hammer (Fig. 9). Once seal is started, continue tapping seal into bore until installer tool seats against case.

Fig. 9 Front Output Seal Installation
Fig. 9 Front Output Seal Installation

1 - INSTALLER 6952-A
2 - TRANSFER CASE

    Next pageDisassembly and assembly
