Jeep Cherokee (XJ): Specifications

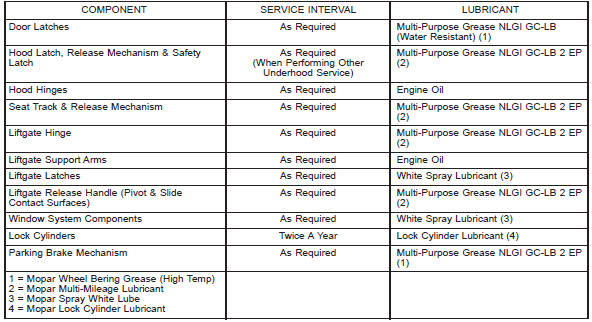

Body lubricants

Body lubricants

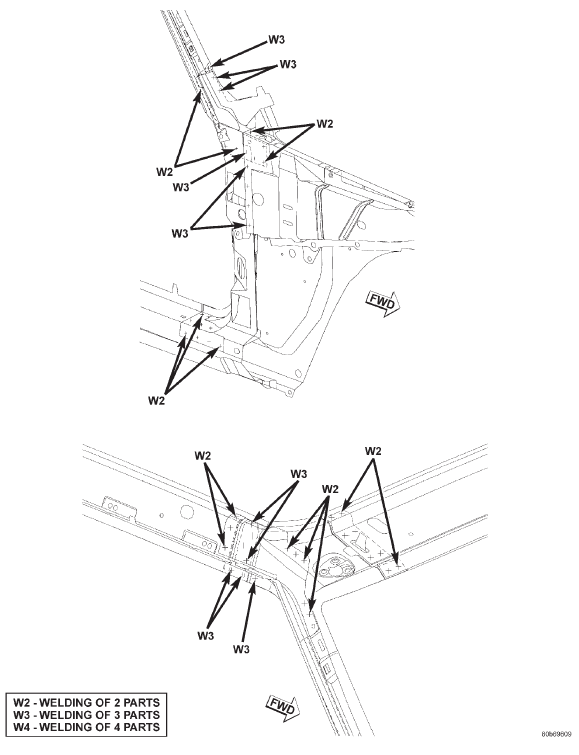

Weld locations

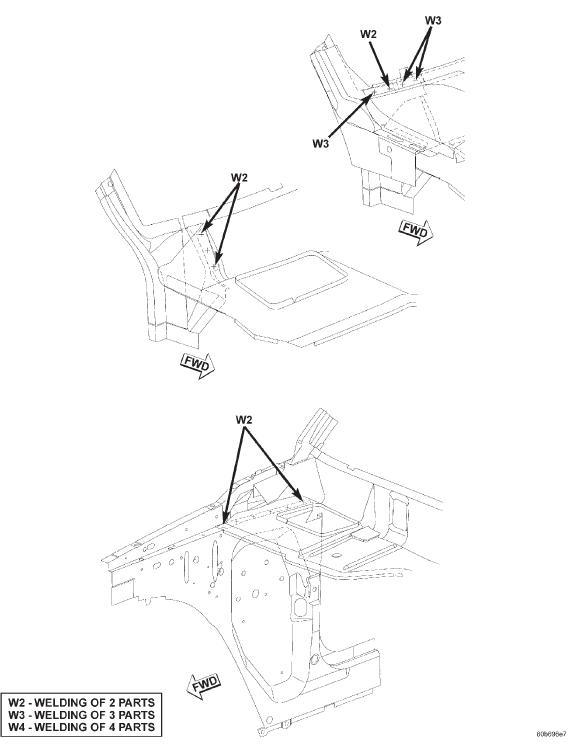

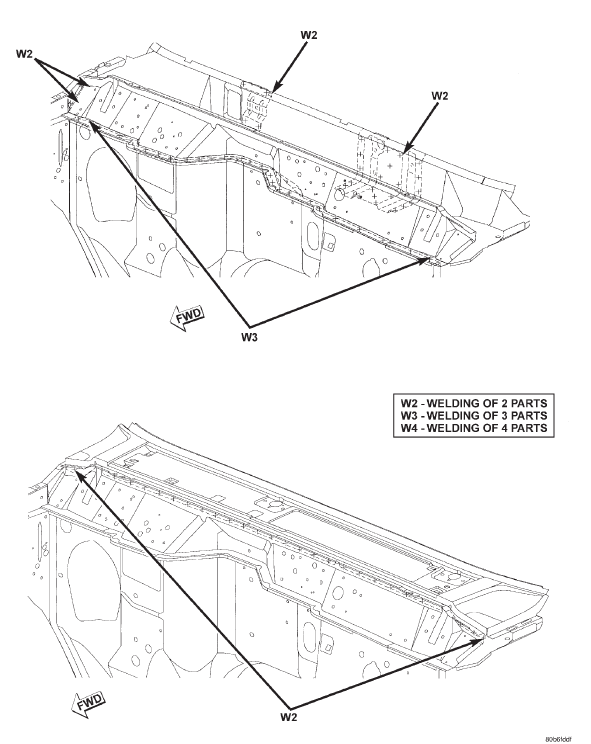

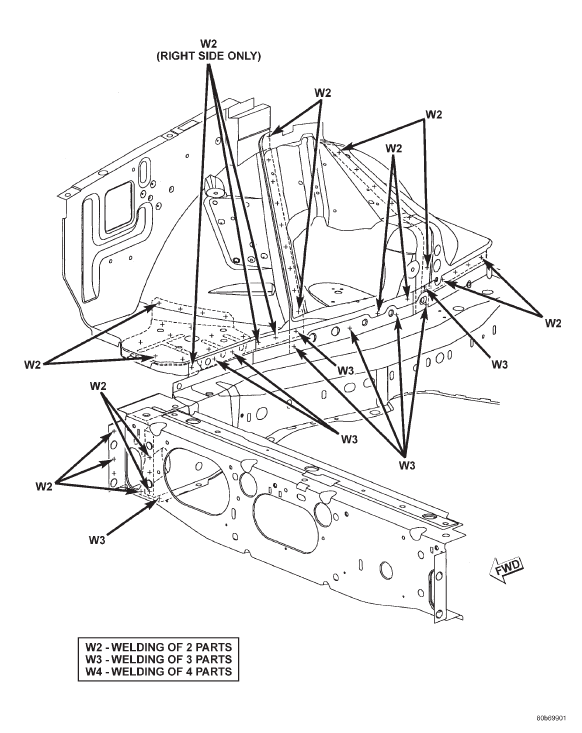

UPPER COWL

UPPER COWL

UPPER COWL

UPPER COWL

COWL

COWL

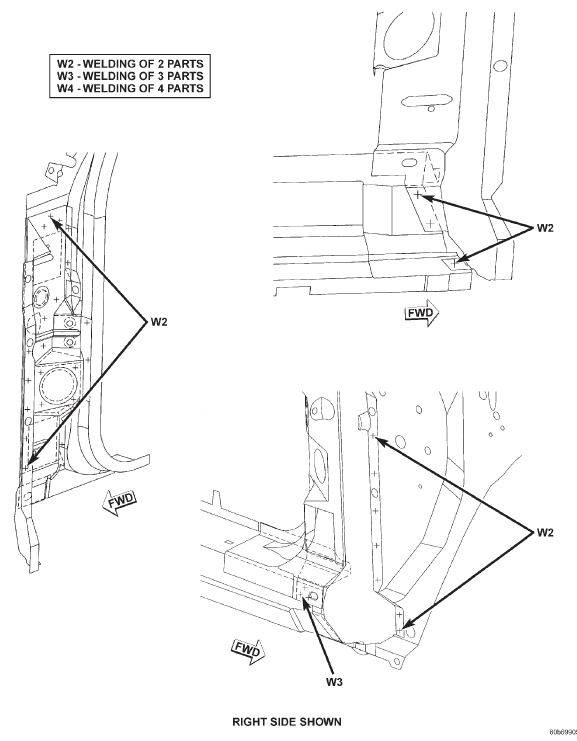

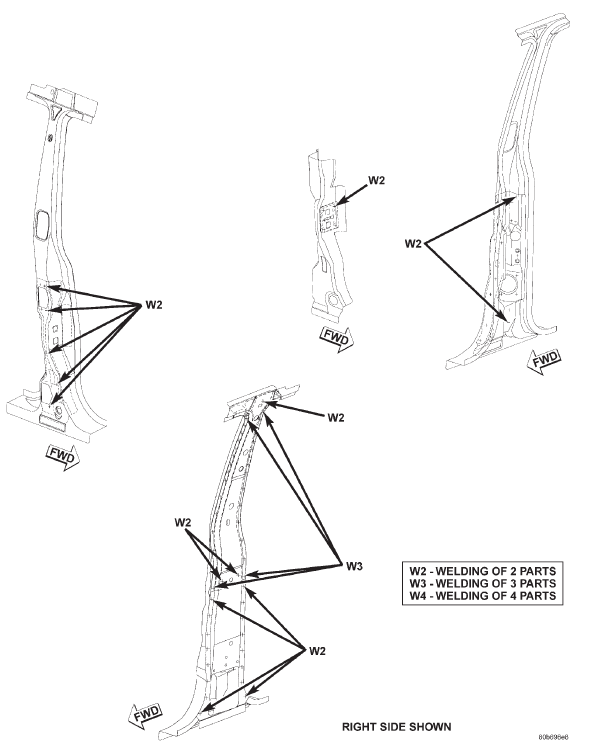

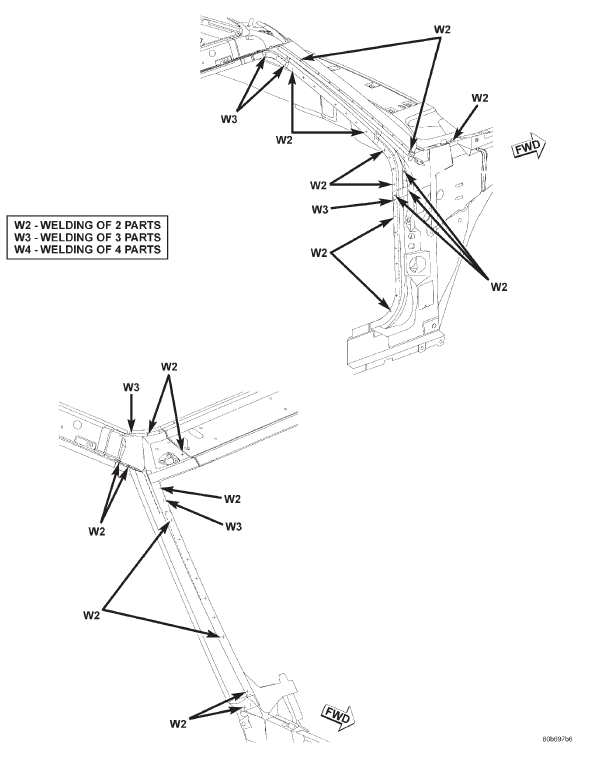

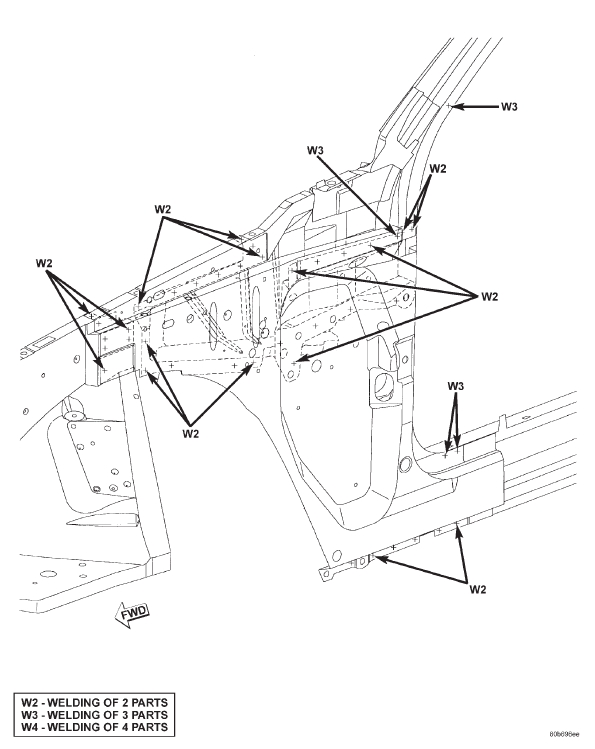

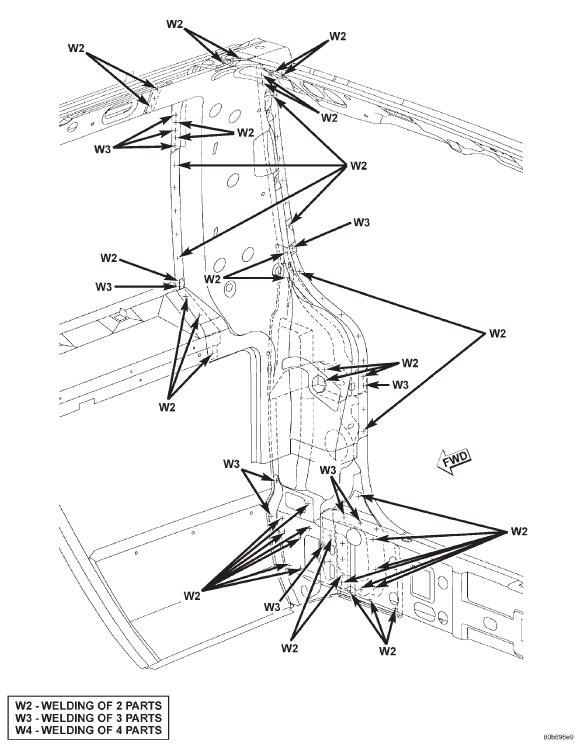

A-PILLAR

A-PILLAR

A-PILLAR

A-PILLAR

A-PILLAR

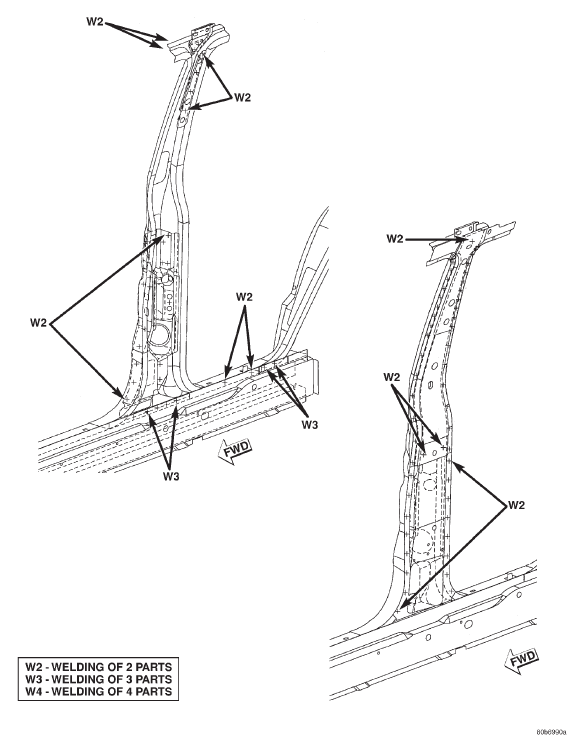

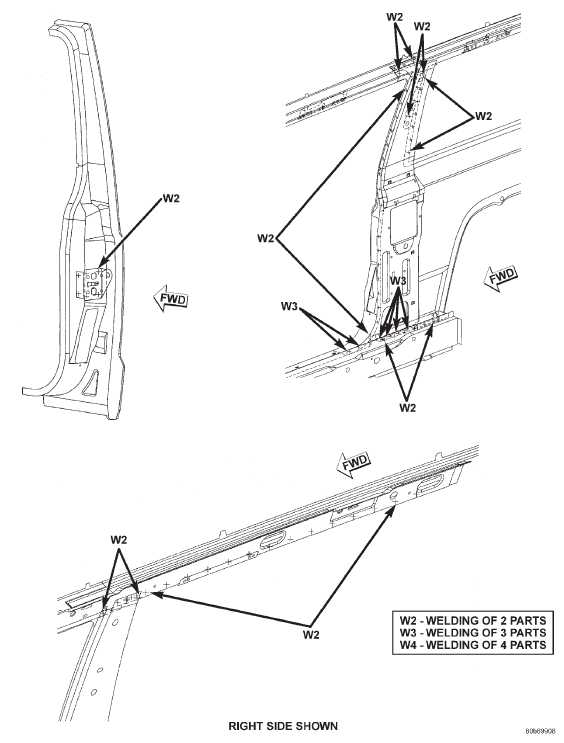

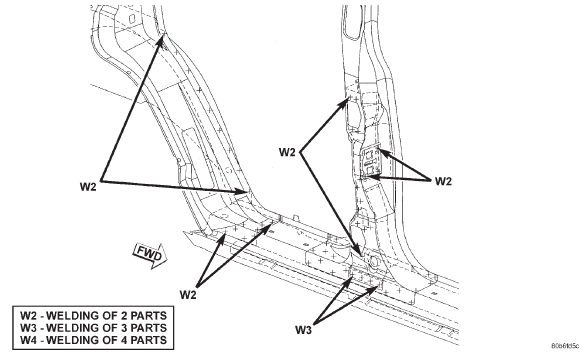

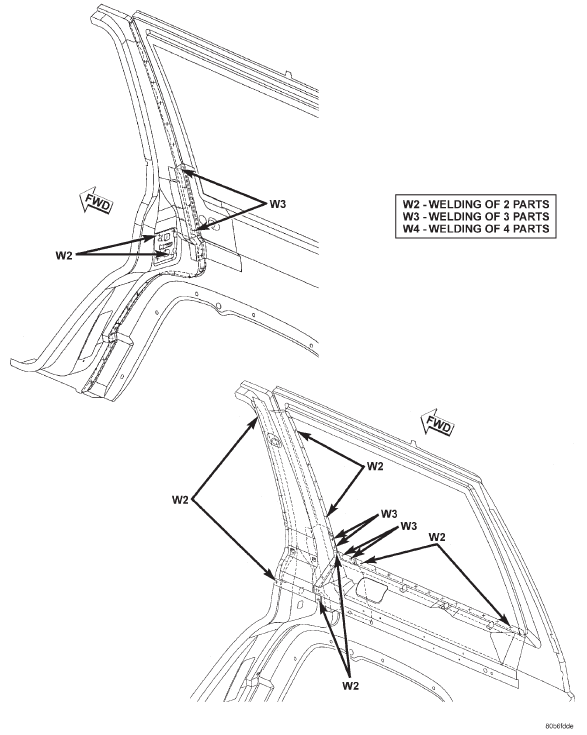

B-PILLAR

B-PILLAR

D-PILLAR

D-PILLAR

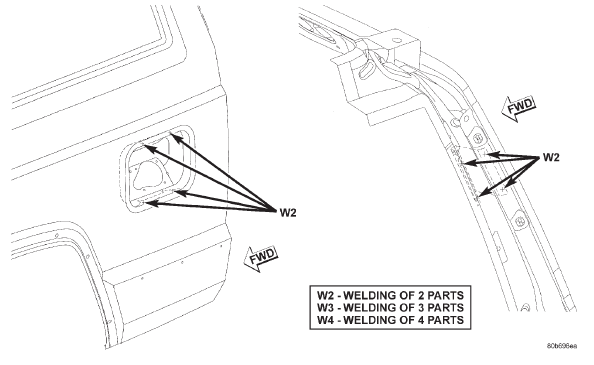

FUEL FILLER OPENING

FUEL FILLER OPENING

CARGO AREA FLOOR PAN

CARGO AREA FLOOR PAN

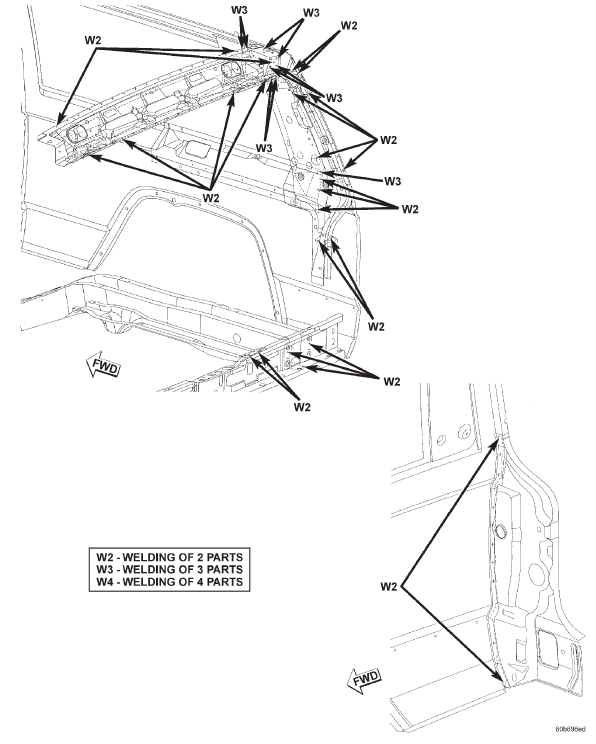

ROOF AND D-PILLAR

ROOF AND D-PILLAR

LIFTGATE OPENING

LIFTGATE OPENING

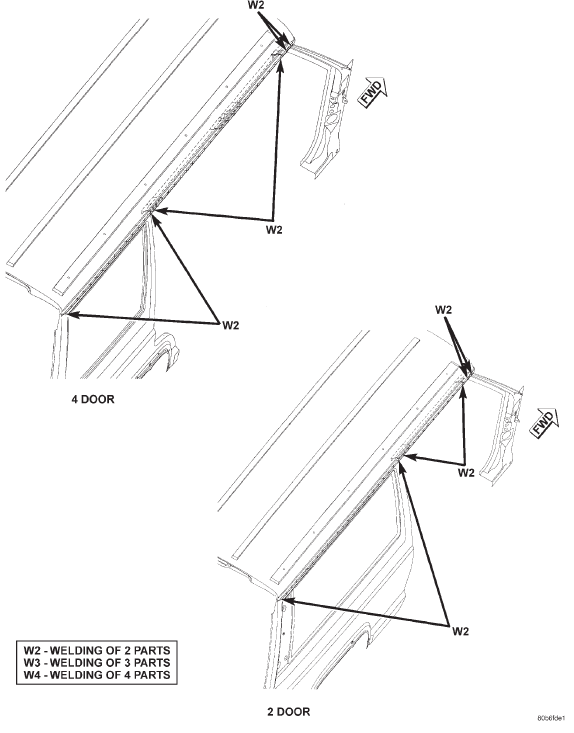

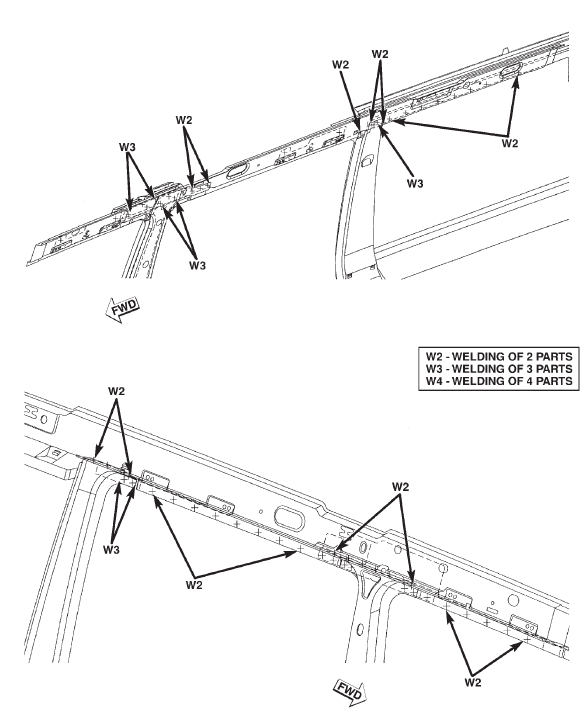

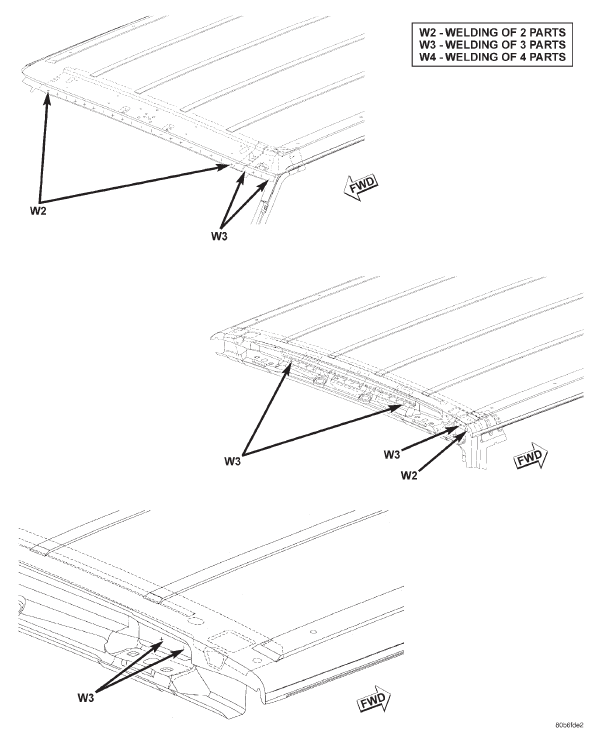

ROOF

ROOF

ROOF

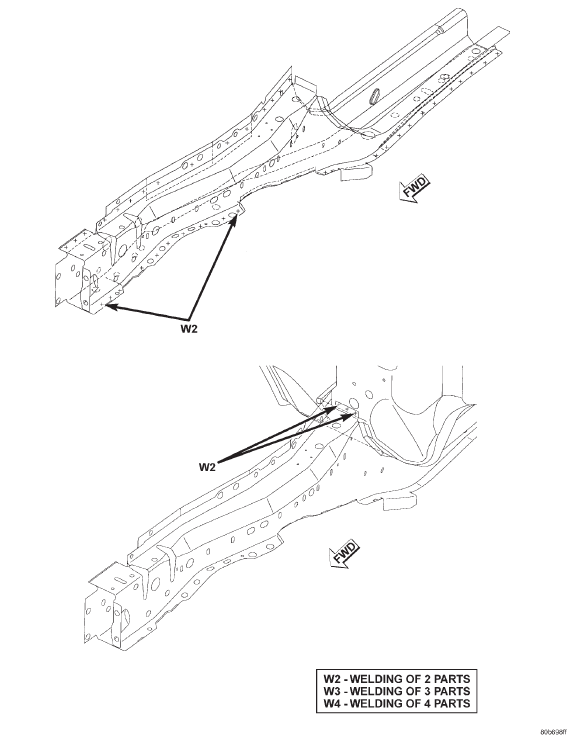

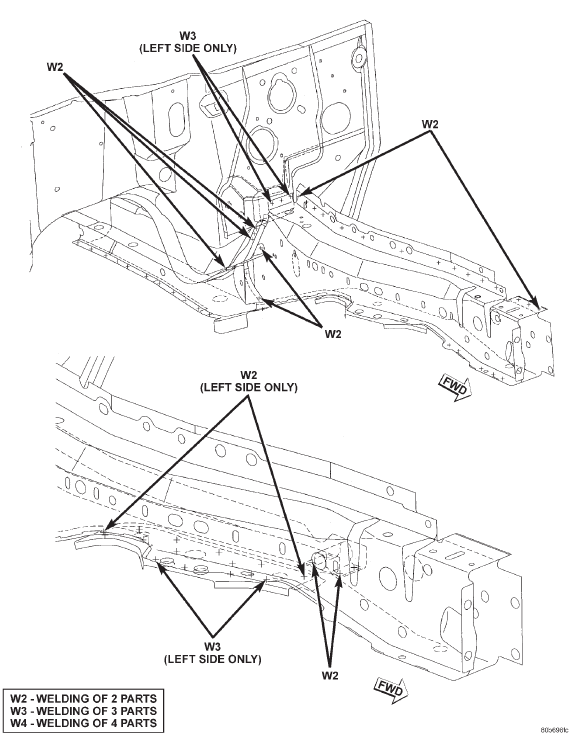

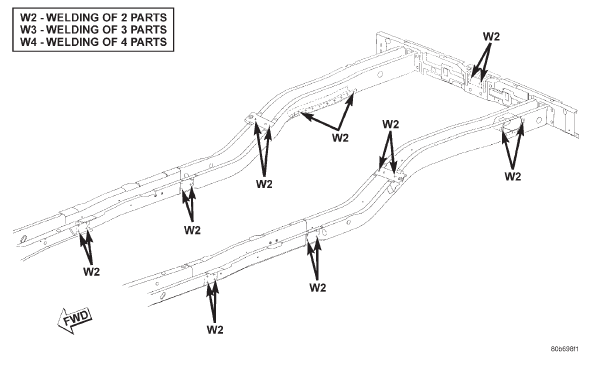

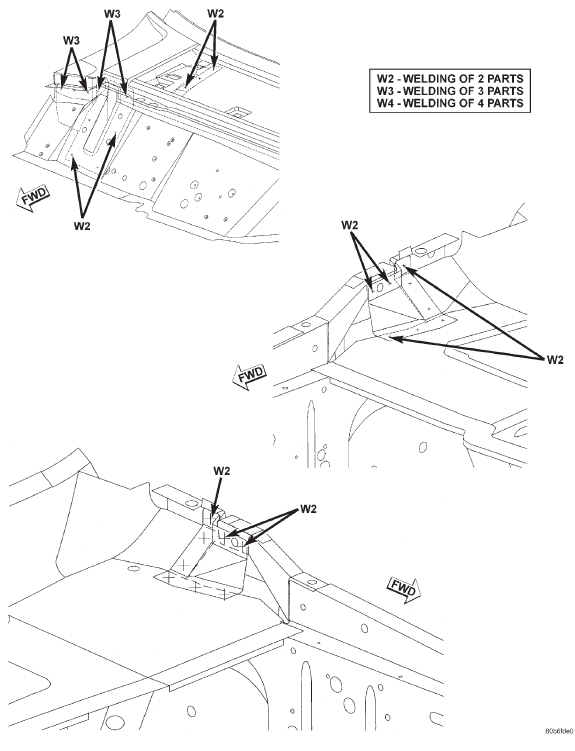

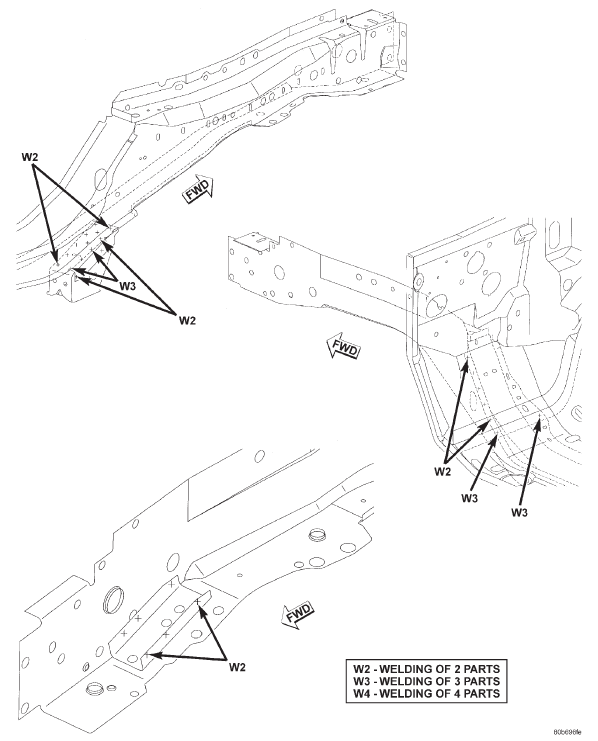

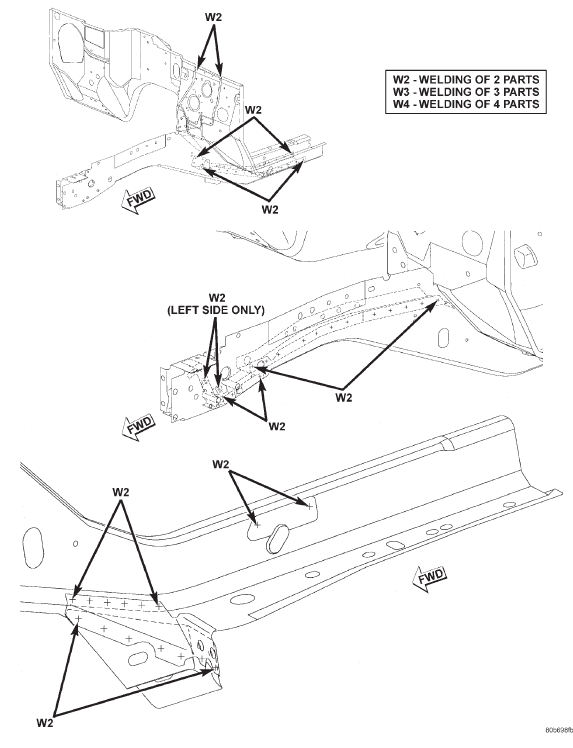

FRAME RAIL

FRAME RAIL

FRAME RAIL

FRAME RAIL

FRAME RAIL

REINFORCEMENT

REINFORCEMENT

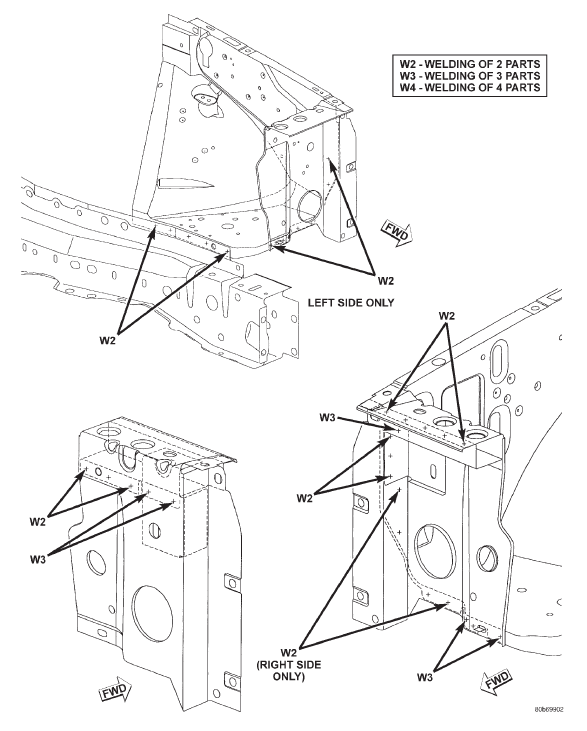

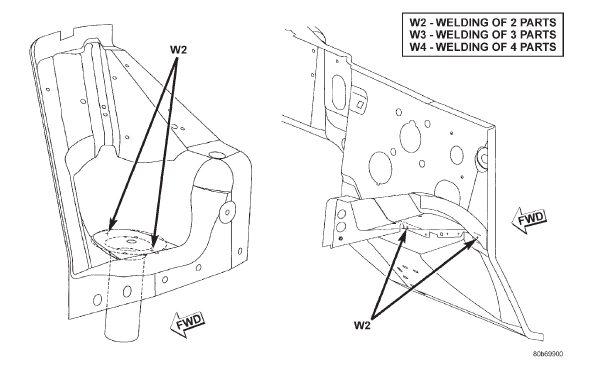

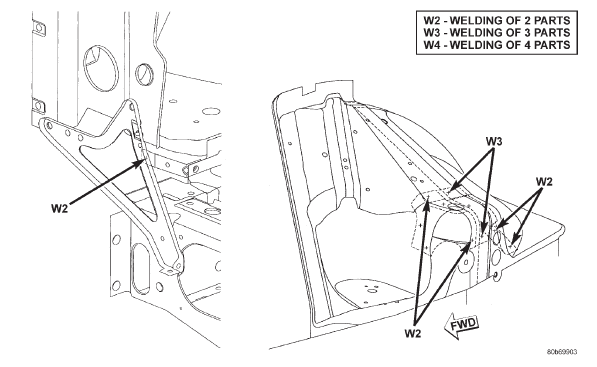

FRONT INNER FENDER

FRONT INNER FENDER

FRONT INNER FENDER AND RADIATOR CLOSURE PANEL

FRONT INNER FENDER AND RADIATOR CLOSURE PANEL

REINFORCEMENT

REINFORCEMENT

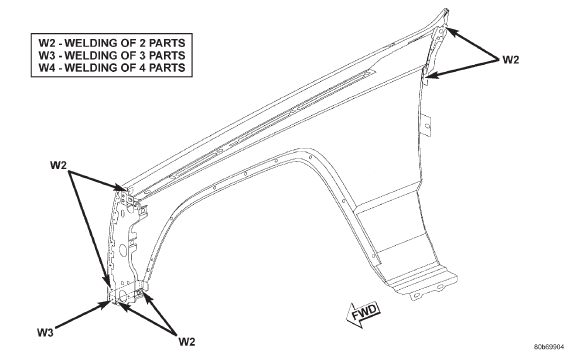

FRONT FENDER

FRONT FENDER

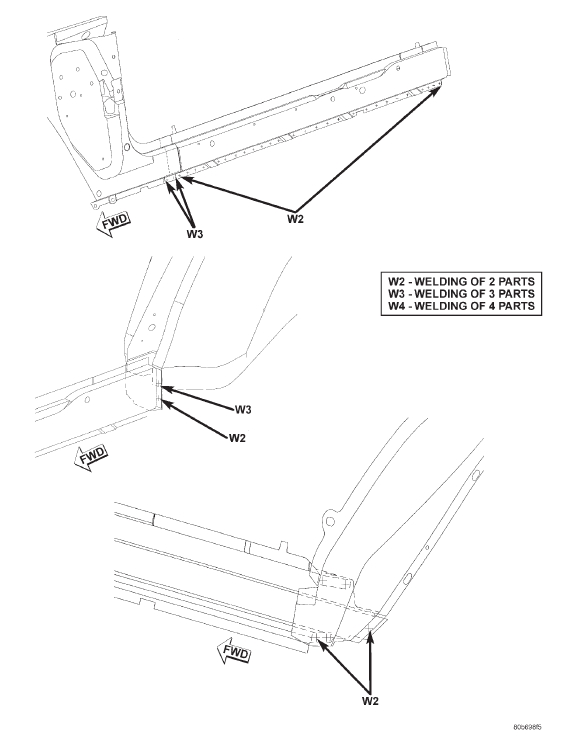

BODY SIDE

BODY SIDE

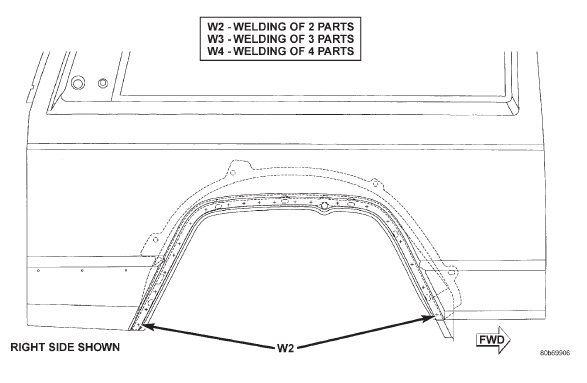

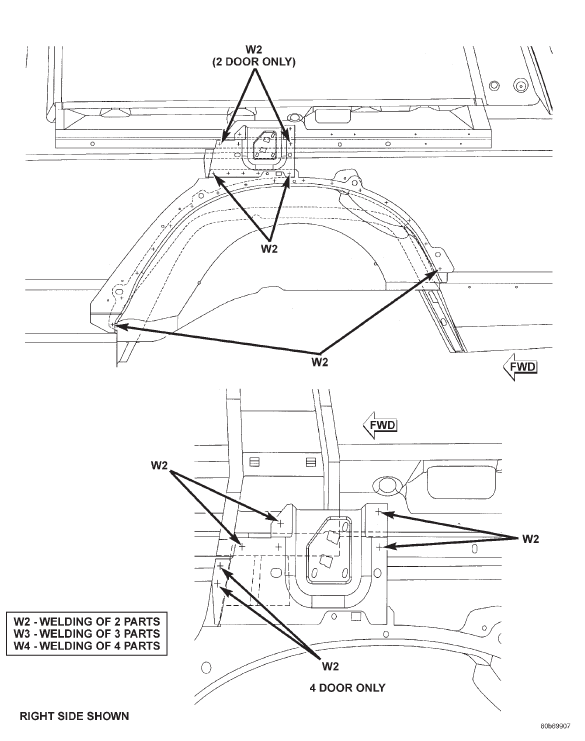

REAR WHEELHOUSE

REAR WHEELHOUSE

REAR INNER WHEELHOUSE

REAR INNER WHEELHOUSE

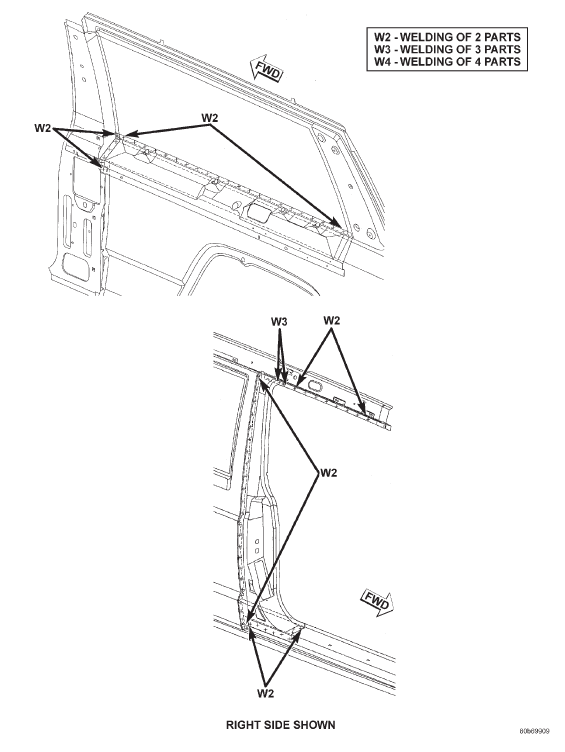

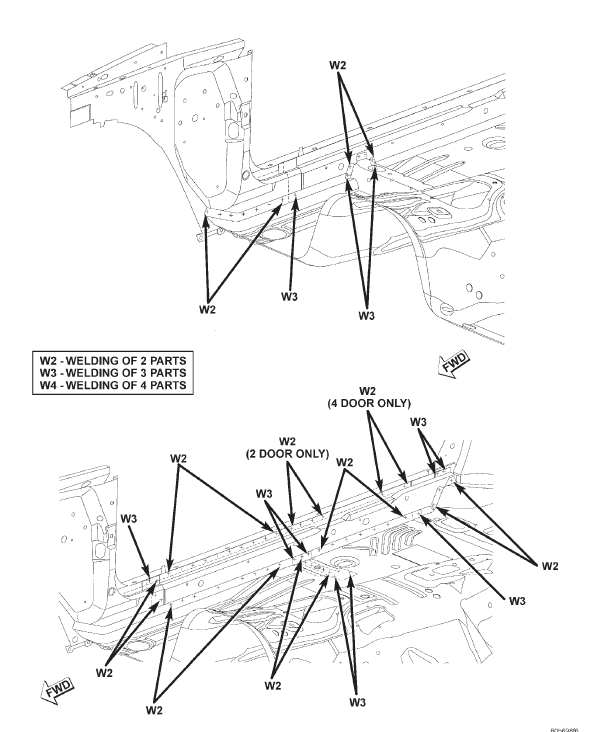

BODY SIDE

BODY SIDE

BODY SIDE

BODY SIDE

BODY SIDE

BODY SIDE

BODY SIDE

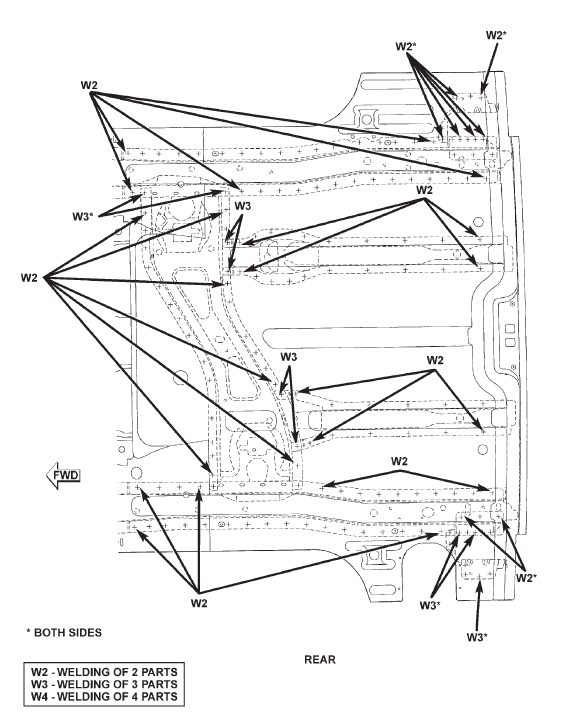

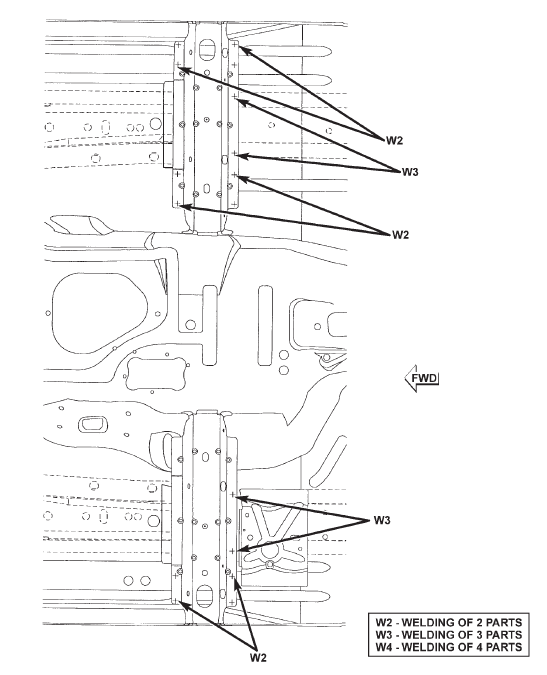

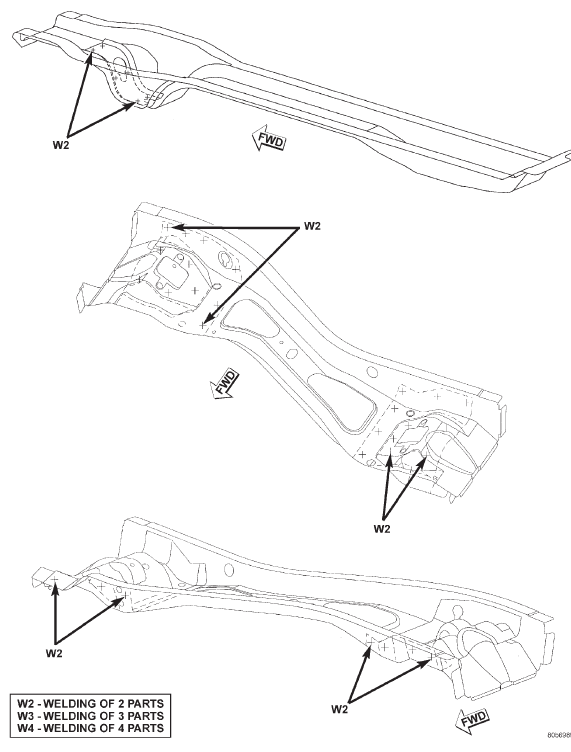

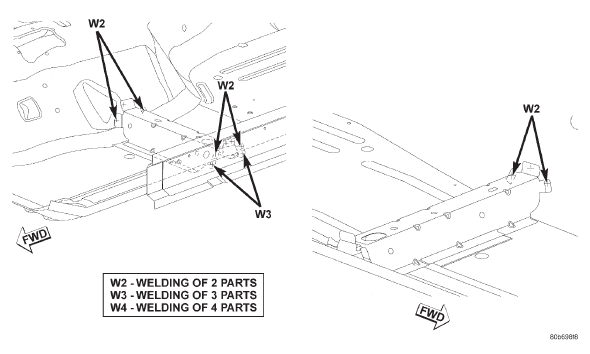

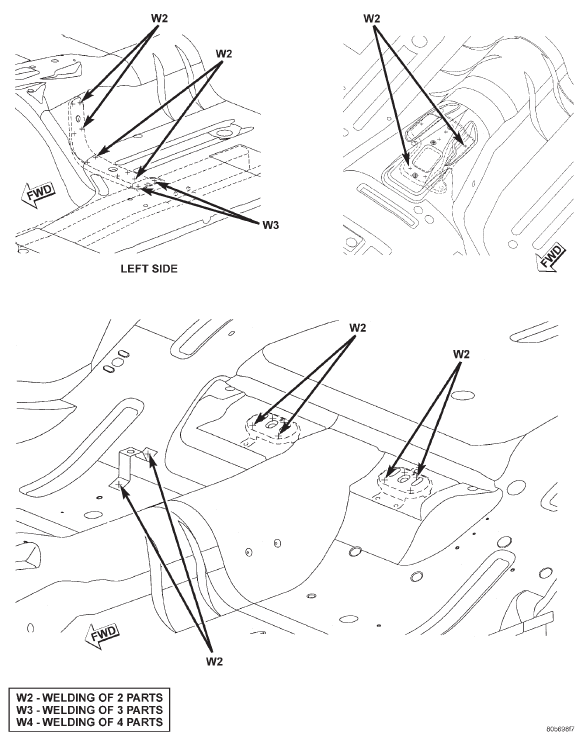

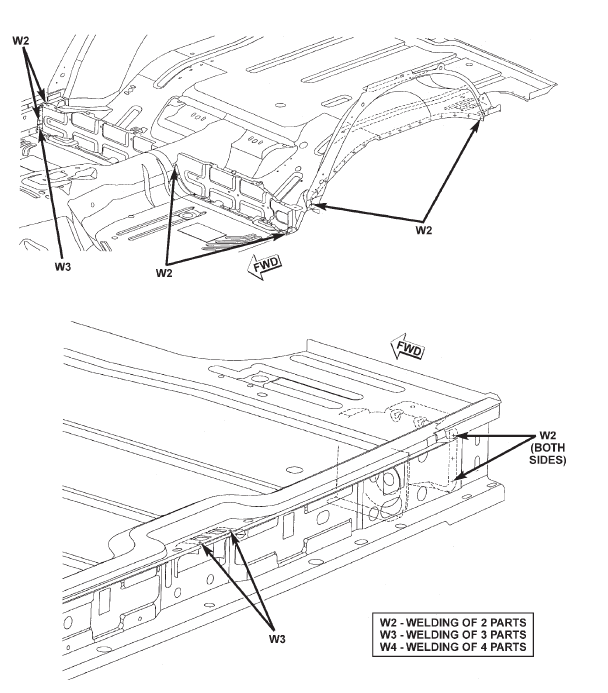

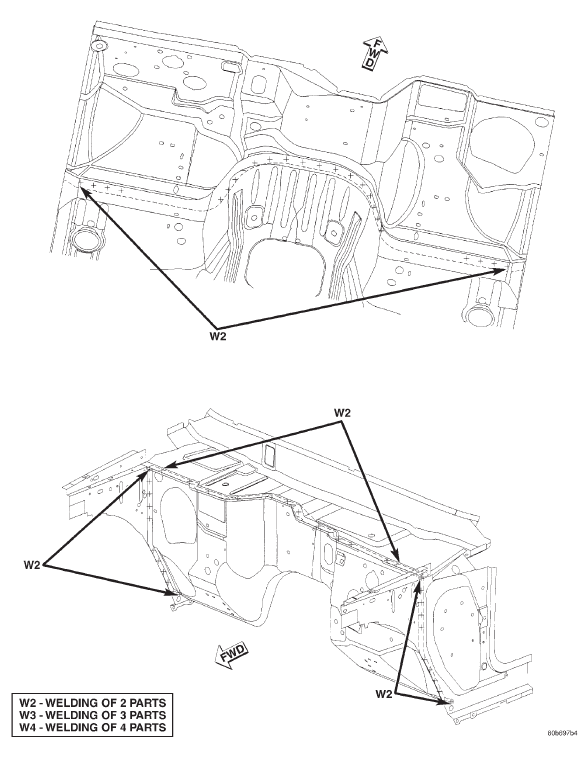

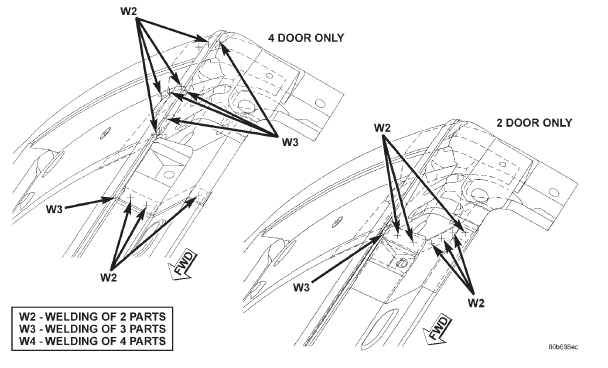

UNDERBODY

UNDERBODY

UNDERBODY

UNDERBODY

UNDERBODY

UNDERBODY

UNDERBODY

UNDERBODY

UNDERBODY

UNDERBODY

UNDERBODY

UNDERBODY

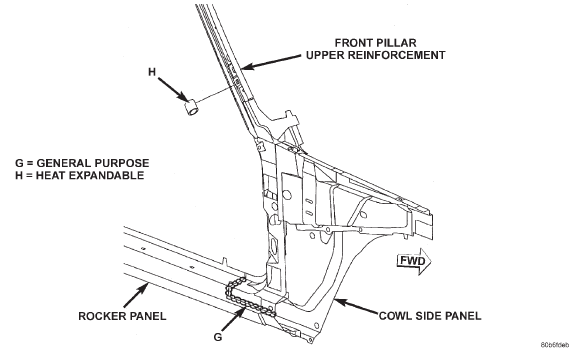

Body sealing locations

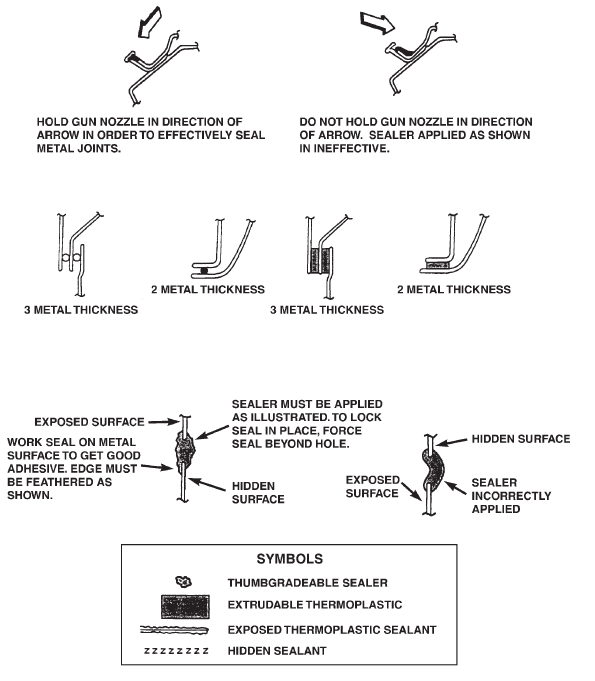

APPLICATION METHODS

APPLICATION METHODS

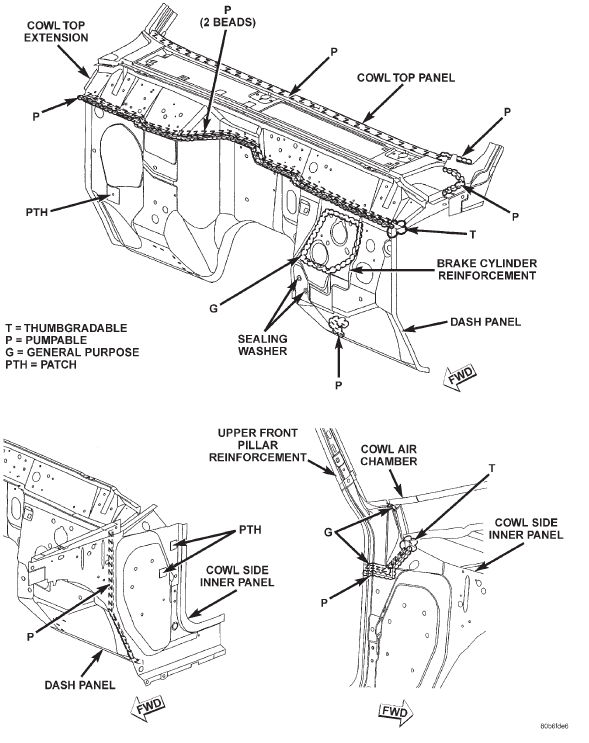

COWL AND DASH PANEL

COWL AND DASH PANEL

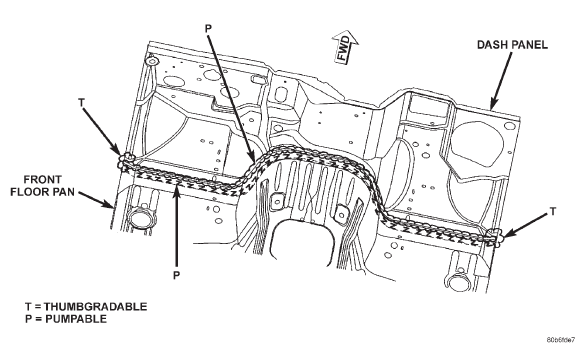

DASH PANEL AND FLOOR PAN

DASH PANEL AND FLOOR PAN

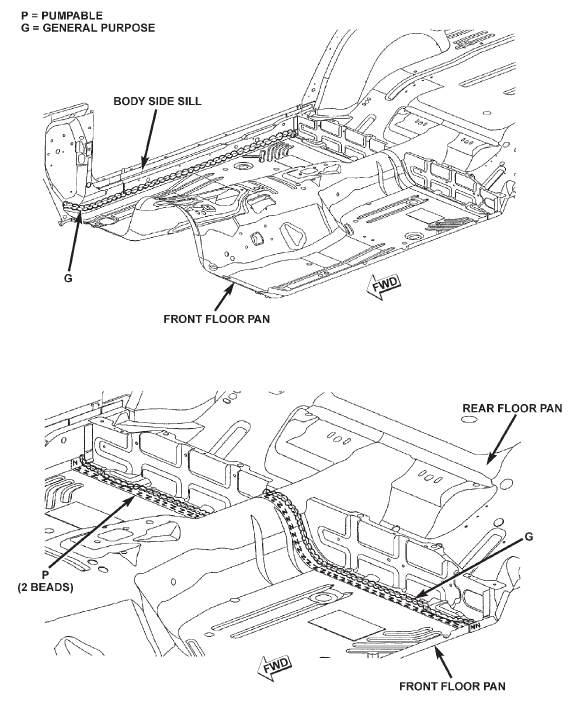

FLOOR PAN

FLOOR PAN

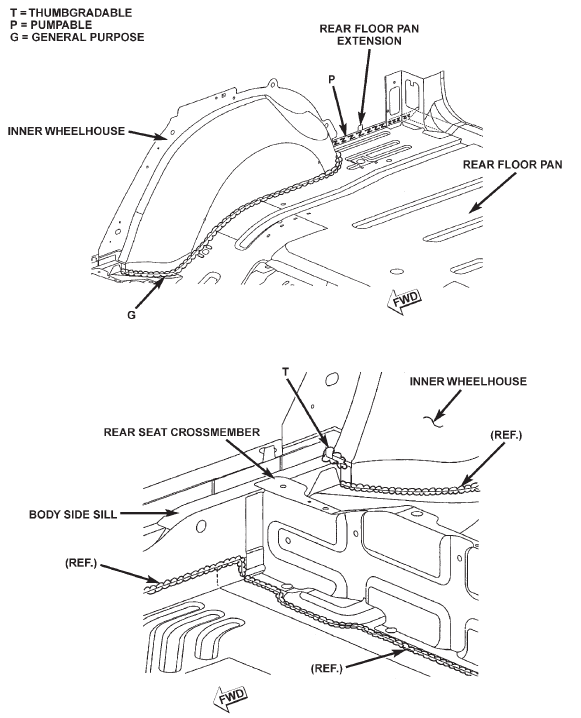

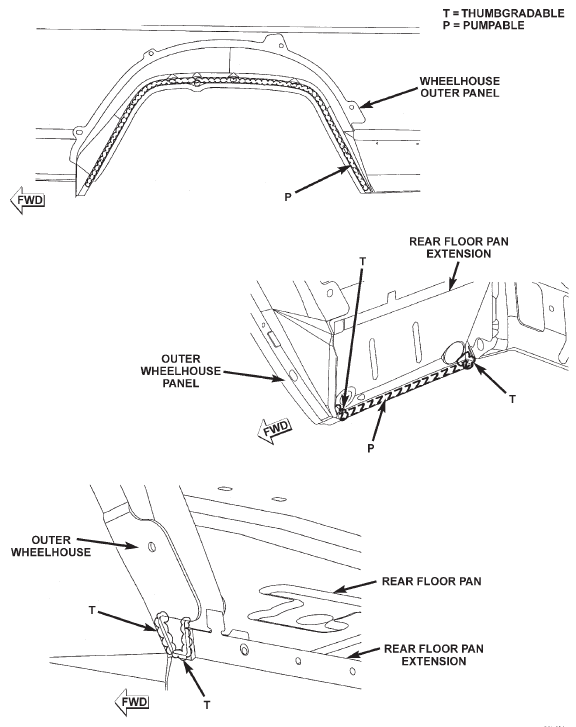

REAR INNER WHEELHOUSE

REAR INNER WHEELHOUSE

FRONT INNER WHEELHOUSE

FRONT INNER WHEELHOUSE

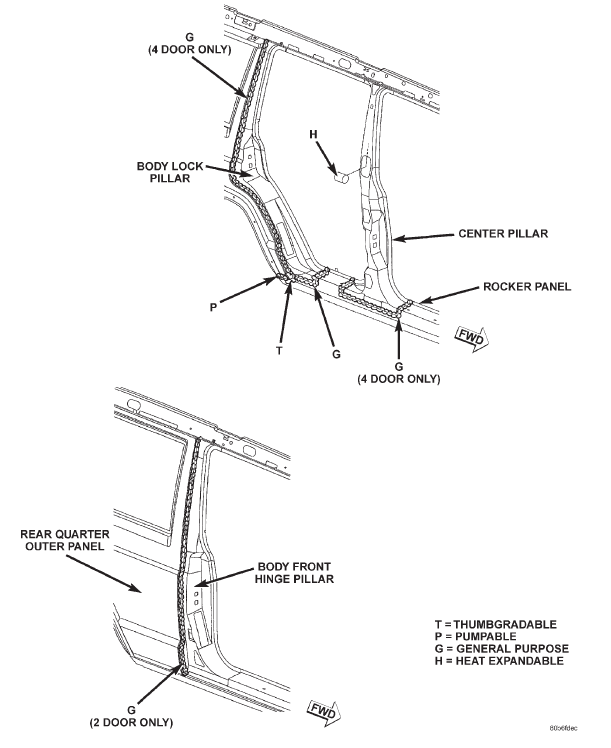

BODY SIDE

BODY SIDE

BODY SIDE

BODY SIDE

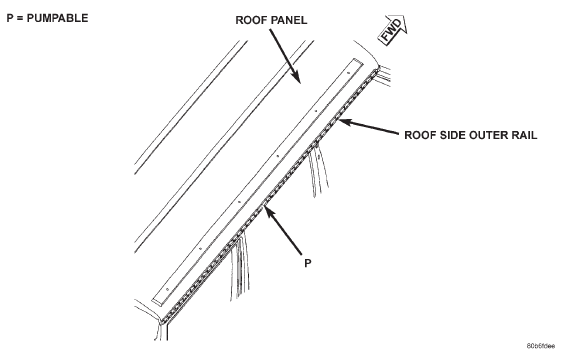

ROOF PANEL

ROOF PANEL

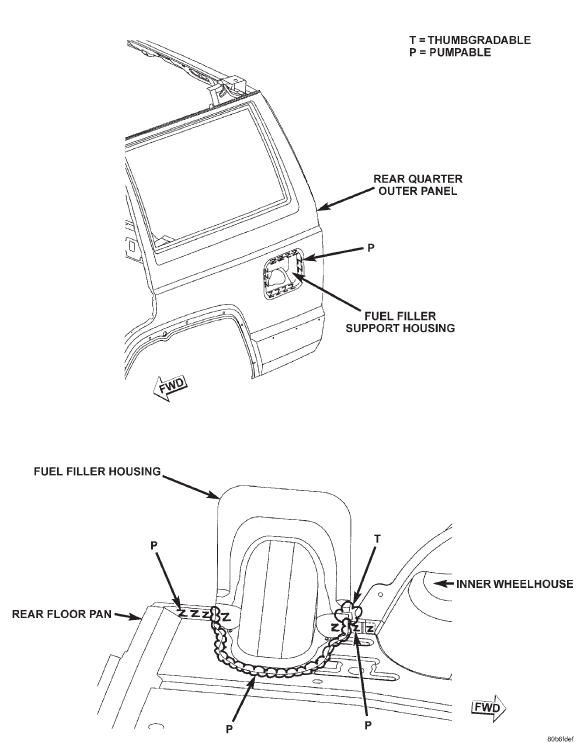

FUEL FILLER HOUSING

FUEL FILLER HOUSING

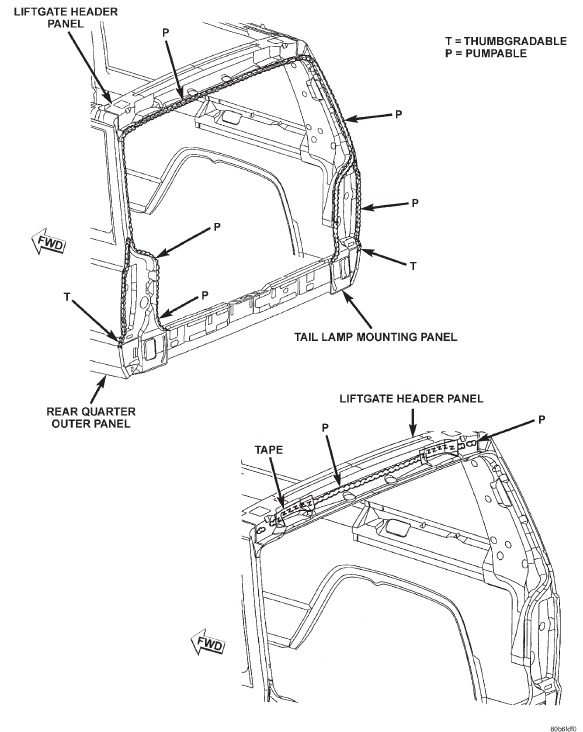

LIFTGATE OPENING

LIFTGATE OPENING

Structural adhesive locations

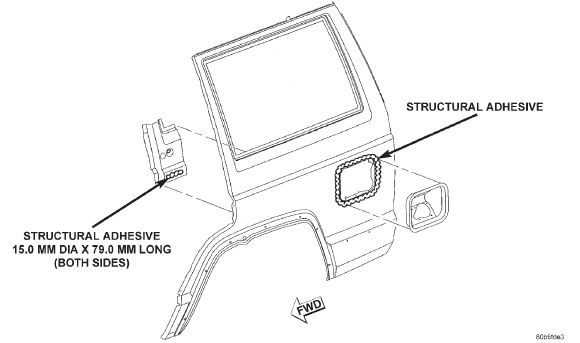

LEFT QUARTER PANEL

LEFT QUARTER PANEL

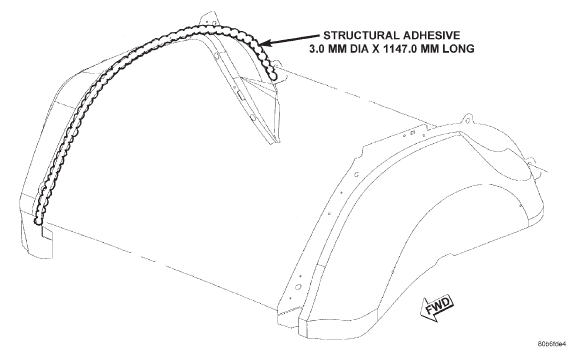

REAR WHEELHOUSE

REAR WHEELHOUSE

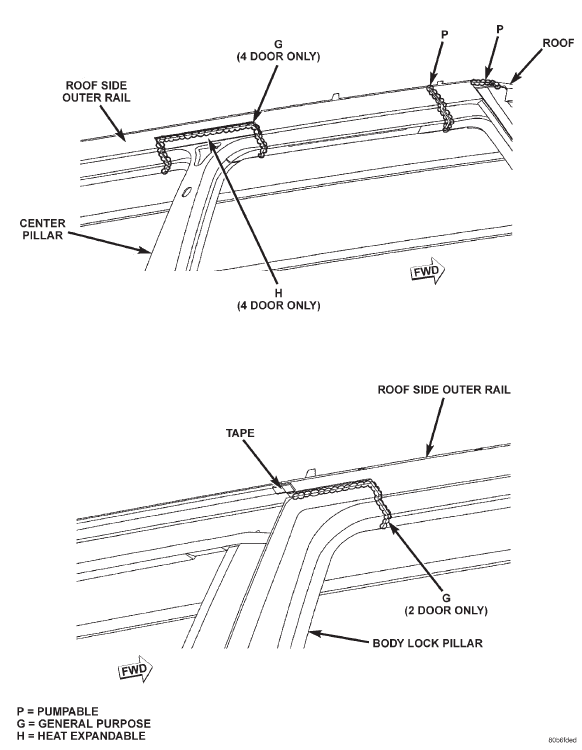

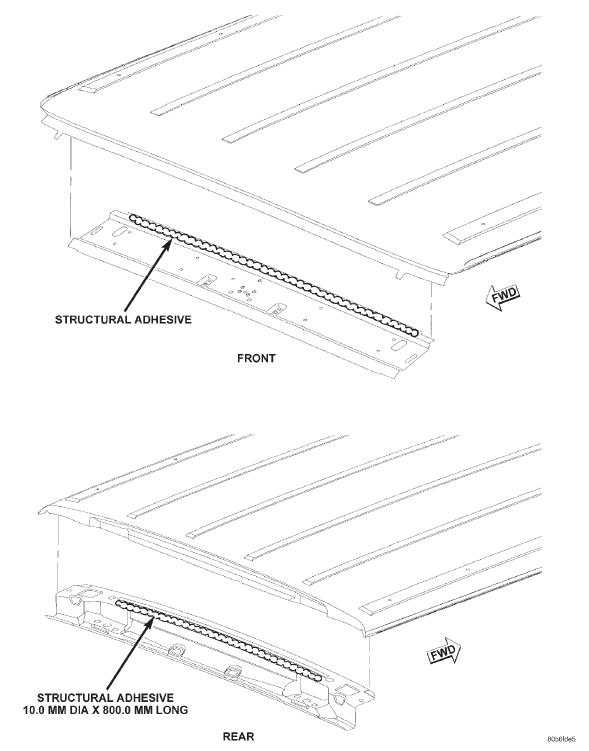

ROOF BOWS

ROOF BOWS

Body gap and flush measurements

Body gap and flush measurements

Body opening dimensions

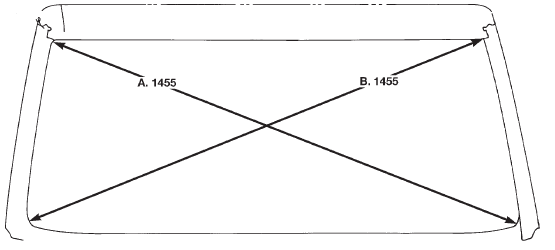

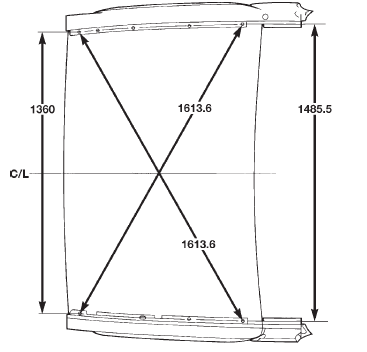

WINDSHIELD OPENING

WINDSHIELD OPENING

  • A. & B. Center of radius at bottom to center of radius at top

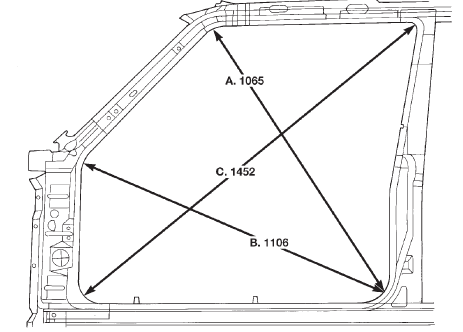

FRONT DOOR OPENING 2-DOOR

FRONT DOOR OPENING 2-DOOR

  • A. Center of front door lower rear radius to center of A-pillar radius
  •  B. Center of radius at bottom rear to center of radius at lower A-pillar
  •  C. Center of radius at bottom front to center of radius at top rear

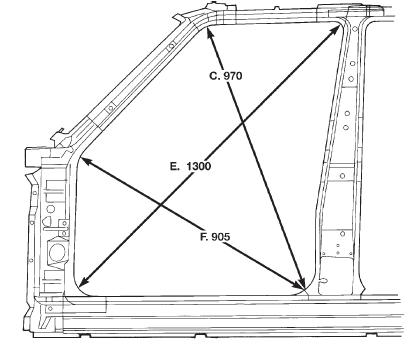

FRONT DOOR OPENING 4-DOOR

FRONT DOOR OPENING 4-DOOR

  • C. Center of front door lower rear radius to center of A-pillar radius
  •  E. Center of radius at bottom rear to center of radius at lower A-pillar
  •  F. Center of radius at bottom front to center of radius at top rear

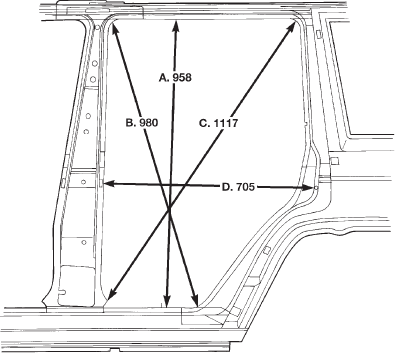

REAR DOOR OPENING

REAR DOOR OPENING

  • A. Quarter panel to front outer body side upper and lower seam
  •  B. Center of front upper door radius to center of rear lower door radius
  •  C. Center of front lower door radius to center of rear upper door radius
  •  D. Flange to rear door striker mount

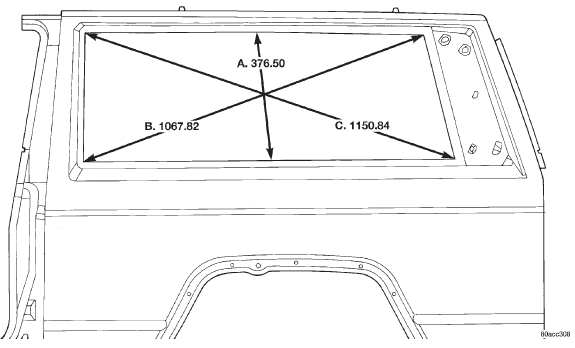

QUARTER WINDOW OPENING 2-DOOR

QUARTER WINDOW OPENING 2-DOOR

  • A. Center of upper and lower rear quarter window opening
  •  B. Center of radius front lower corner to center of radius rear upper corner
  •  C. Center of radius front upper corner to center of radius rear lower corner

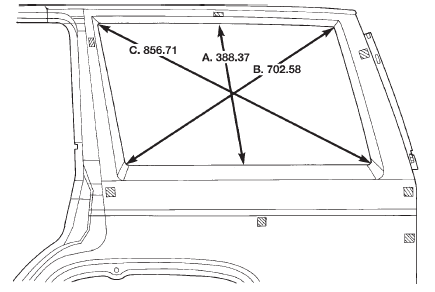

QUARTER WINDOW OPENING 4-DOOR

QUARTER WINDOW OPENING 4-DOOR

  • A. Center of upper and lower rear quarter window opening
  •  B. Center of radius front lower corner to center of radius rear upper corner
  •  C. Center of radius front upper corner to center of radius rear lower corner

ENGINE COMPARTMENT

ENGINE COMPARTMENT

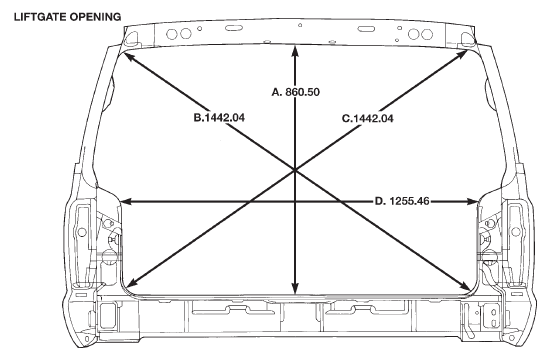

LIFTGATE OPENING

  •  A. Center of upper liftgate opening to liftgate striker mount
  •  B. & C. Center of radius upper corner to center of radius lower corner
  •  D. Distance between outer quarter panel to tail lamp mounting panel to inner quarter panel seams

LIFTGATE OPENING

Torque specifications

DESCRIPTION TORQUE

Bucket Seat to Floor Pan Bolt . . 27 N·m (20 ft. lbs.)
Bucket Seat to Floor Pan Nut . . 40 N·m (30 ft. lbs.)
Front Door Hinge Bolts . . . . . . . . . 3 N·m (2 ft. lbs.)
Front Door Latch Screw . . . . . . . 11 N·m (8 ft. lbs.)
Front Door Latch Striker Screw . . . . . . . . . 28 N·m (20 ft. lbs.)
Front Seat Belt Anchor Bolt . . . 43 N·m (32 ft. lbs.)
Front Retractor Anchor Bolt . . . 43 N·m (32 ft. lbs.)
Front Seat Belt Buckle Anchor Bolt . . . . . . 43 N·m (32 ft. lbs.)
GOP to Support Bracket Nut . . . 4 N·m (38 in. lbs.)
GOP to Fender Nut . . . . . . . . . . 4 N·m (38 in. lbs.)
Liftgate Hinge to Body and/or
Liftgate Bolt . . . . . . . . . . . . . . . . . . . . . . 26 N·m (19 ft. lbs.)
Liftgate Latch Screw . . . . . . . . . . 13 N·m (9 ft. lbs.)
Liftgate Latch Striker Nut . . . . 54 N·m (40 ft. lbs.)
Rear Door Hinge Bolt . . . . . . . . . . 3 N·m (2 ft. lbs.)
Rear Door Latch Screw . . . . . . . . 11 N·m (8 ft. lbs.)
Rear Door Latch Striker Screw . 28 N·m (20 ft. lbs.)
Rear Shoulder Belt Lower Anchor Bolt . . . . 43 N·m (32 ft. lbs.)

DESCRIPTION TORQUE

Rear Seatback Pivot Bolt . . . . . 33 N·m (25 ft. lbs.)
Rear Seat Belt/Buckle Anchor Bolt . . . . . . . 43 N·m (32 ft. lbs.)
Rear Shoulder Belt Upper Anchor Bolt . . . . 43 N·m (32 ft. lbs.)
